Performance & Annual Operating Cost Comparison: Plunger Pump VS Centrifugal Slurry Pump

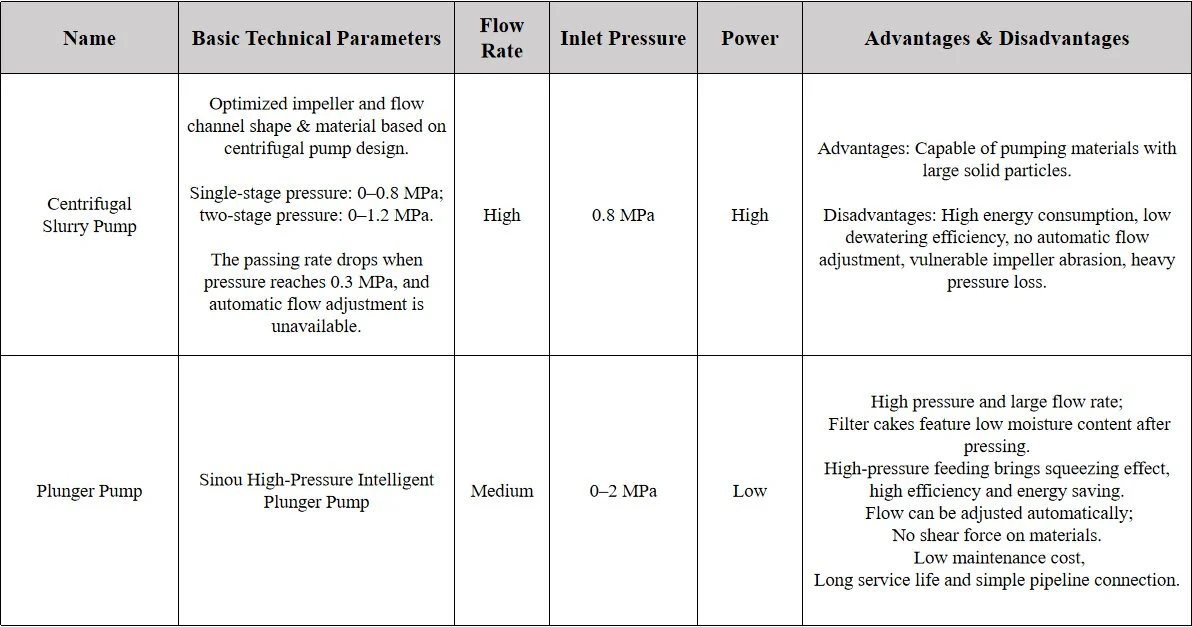

1. Technical Parameter Contrast

The centrifugal slurry pump is modified based on traditional centrifugal structures. Its single-stage working pressure ranges from 0–0.8 MPa, while two-stage pressure reaches 0–1.2 MPa. A clear defect emerges when pressure hits 0.3 MPa: the solid passing capacity declines sharply, and automatic flow adjustment cannot be realized. Although it can deliver materials containing large solid particles, it comes with obvious drawbacks including high power demand, low sludge dewatering efficiency, severe pressure loss, and easy abrasion of core impeller parts.By comparison, the Sinou high-pressure  plunger pump supports adjustable inlet pressure of 0–2 MPa with medium flow output and low overall power consumption. High-pressure feeding creates strong squeezing force to lower filter cake moisture. The equipment supports automatic flow adjustment and causes no shear damage to sludge flocs critical for textile and mining wastewater treatment. Meanwhile, it features low maintenance needs, extended service life and convenient pipeline installation.

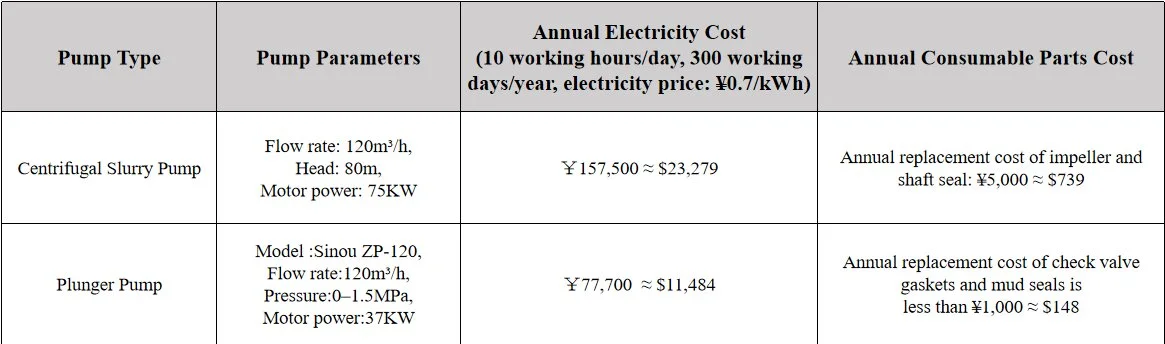

2. Quantified Annual Operating Cost Analysis

The cost calculation adopts unified standards: 10 operating hours per day, 300 working days per year, electricity price of CNY 0.7 per kWh. Both pumps run at the matched flow rate of 120m³/h.

Centrifugal Slurry Pump

Motor power:75KW

Annual electricity cost: CNY 157,500 (USD 23,279)

Yearly wearing-part expense: CNY 5,000 (USD 739), mainly used for regular replacement of impellers and shaft seals.

Sinou ZP-120 Plunger Pump

Motor power:37KW

Annual electricity cost: CNY 77,700 (USD 11,484), cutting power expenditure by nearly half.

Yearly consumable cost is controlled below CNY 1,000 (USD 148), only for routine replacement of check valve gaskets and mud seals.

3. Industry Outlook

At present, centrifugal slurry pumps remain mainstream in Bangladesh, Indonesia and other Southeast Asian countries for concrete mixing plants, textile dyeing factories and mining wastewater stations. Many enterprises are unaware of the huge long-term cost advantages brought by plunger pumps. Field application data proves that the Sinou ZP-120 plunger pump balances stable dewatering performance and controllable operation cost. It is a cost-effective upgrade solution for factories eager to reduce recurring energy and maintenance spending.Sinou welcomes global environmental engineering partners, factory owners and technical teams to obtain complete operation videos, field case data and customized technical solutions.
