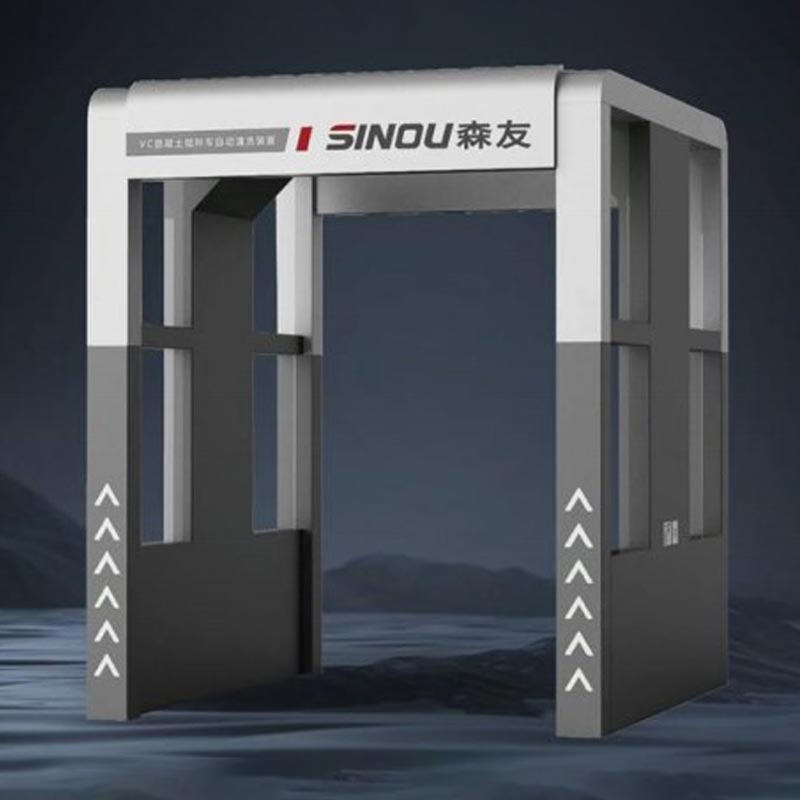

Advanced Automatic Mixer Truck Washing Machine Factory

SINOU is a reliable manufacturer of Automatic Mixer Truck Washing Machine, which is a dedicated intelligent cleaning solution developed exclusively for ready-mix concrete fleets, construction mixers and bulk engineering vehicles.

Different from ordinary civilian washers and simple manual flushing devices, this equipment integrates intelligent sensing, high-pressure water jet, full-range decontamination and closed water recycling into one set. It targets stubborn concrete mortar, hardened cement scale, mud and gravel attached to mixer truck hoppers, mixing drums, tires and undercarriages.

Designed for 24/7 continuous operation in harsh construction environments, the whole machine realizes driver-on-board washing without alighting. It effectively cuts manual cleaning risks, reduces water consumption and complies with strict global environmental regulations.

Widely deployed at concrete batching plants, municipal construction yards, mining bases and large vehicle depots across the Middle East, Europe and Southeast Asia, it has become a standard supporting facility for modern green concrete production lines.

Dual Working Modes & Operating Flow

This washer supports automatic drive-through mode and manual fixed-point mode to adapt to different cleaning demands. The overall workflow is streamlined and highly efficient.

(1) Automatic Drive-through Mode

① Intelligent Trigger: When a mixer truck enters the designated washing lane, microwave sensors (higher anti-interference than infrared sensors) identify the vehicle and activate the entire system automatically.

② Omnidirectional High-pressure Cleaning: Multi-group top, side and undercarriage spray arms launch 3D high-pressure water jets to strip cement dirt, hardened mortar and mud from every corner.

③ Sewage Collection & Recycling: All wastewater flows into the underground multi-stage sedimentation tank. After sludge separation and filtration, clean water is pumped back to the water supply system for cyclic use.

④ Auto Stop & Reset: The system stops spraying once the vehicle exits the sensing area, and returns to standby for the next vehicle. A full cycle takes only 50–70 seconds.

(2) Manual Fixed-point Mode

Operators control the spray system via the touch panel to perform targeted flushing on heavily contaminated areas such as mixing drum outlets and feed hoppers. This mode is ideal for vehicles with long-term concrete accumulation or after overnight parking.

Modular Structure & Key Components

Adopting integrated modular design, the equipment is easy to transport, assemble and maintain. All core components are selected for anti-rust, wear and low-temperature resistance to adapt to desert high temperature and rainy humid areas.

(1) Heavy-duty Load-bearing Platform & Main Frame

Constructed with hot-dip galvanized H-beam and thick steel plates, the platform has a rated load of 100 tons, resisting long-term rolling of fully loaded mixer trucks.

The overall frame adopts bolted + welded composite structure, avoiding welding cracks caused by vehicle vibration. Multi-layer anti-corrosion coating is applied for outdoor long-term service.

(2) High-pressure Water Supply & Spray Arm Assembly

Equipped with industrial multistage high-pressure water pumps with stable water pressure up to 110 bar. The swing spray arms on both sides and fixed top nozzles form a full-coverage spray network.

All nozzles are made of tungsten carbide, featuring anti-blocking and anti-abrasion performance, and will not be clogged by fine cement particles.

(3) Microwave Sensing & Central Control System

Adopts industrial microwave radar sensors, which are not affected by dust, strong light and fog. The core PLC + color HMI touch panel supports cycle time, water pressure and spray range adjustment.

Built with overpressure, water shortage and pump idling protection to prevent equipment damage. It can be connected to the plant’s central control system for unified management.

(4) Multi-stage Recirculating Water & Sludge Treatment Module

Consists of primary sedimentation zone, secondary filtration zone and automatic mud scraper. The integrated structure occupies less space.

The mud scraper regularly discharges settled cement sludge, and the water recycling rate reaches over 92%, realizing near-zero wastewater discharge. Matched with anti-scaling HDPE pipelines.

(5) Safety & Auxiliary Components

Equipped with warning lights, sound alarms and anti-collision guardrails to remind drivers and avoid vehicle collision.

Optional rainproof canopy and dust suppression covers for outdoor sites. All electrical parts reach IP65 waterproof and dustproof grade.

Standout Performance & Technical Advantages

(1) Dual-mode Flexible Operation: Switch freely between fast drive-through cleaning and deep fixed-point cleaning to match peak vehicle flow and heavy dirt conditions.

(2) Super Anti-clogging & Decontamination Capacity: Tungsten carbide nozzles + graded filtration system fundamentally solve the clogging problem caused by cement mortar, a common pain point of traditional washers.

(3) High Safety & Low Labor Risk: Drivers finish cleaning without getting off the truck, eliminating falls and slipping hazards during manual hopper cleaning.

(4) Excellent Water-saving & Eco-friendly Effect: The closed recycling system drastically reduces fresh water usage, fully meeting environmental assessment requirements in urban and desert areas.

(5) Strong Environmental Adaptability: Support -10℃ to +55℃ wide temperature operation, stable in Middle East high temperature, Southeast Asia humidity and northern low-temperature environments.

(6) Modular Quick Installation: Split structure enables on-site assembly within 1 working day, no large-scale civil transformation required.

(7) Low Vibration & Low Noise: Optimized pump damping structure, operating noise lower than 75dB, compliant with urban noise standards.

Full Product Line & Technical Data Sheet

(1) Product Classification

① Standard Drive-through Washer: Basic configuration, 100-ton load, suitable for conventional fixed concrete batching plants, cost-effective mainstream model.

② Enhanced Recirculation Model: Equipped with enlarged sedimentation tank and automatic mud scraper, for large mixing plants with over 70 vehicles per day.

③ Mobile Integrated Washer: Integrate frame, water tank and pump unit as a whole, no fixed foundation needed, for temporary construction yards and mobile mixing stations.

④ Full-enclosed Dust-proof & Noise-reduction Model: Add fully enclosed housing, for urban core areas and projects with strict noise and dust control.

(2) Main Technical Parameters

Head-to-Head Competitor Comparison

We compare our Automatic Mixer Truck Washing Machine with infrared induction washers, brush-type vehicle washers and simple manual flushing racks from multiple dimensions to highlight differentiated strengths.

(1) Automatic Microwave Washer VS Infrared Induction Washer

(2) Automatic Touchless Washer VS Brush-type Washer

(3) Automatic System VS Manual Flushing Rack

Applicable Scenarios & System Matching

(1) Core Application Industries

● Large, medium and small ready-mix concrete batching plants

● Mobile mixing stations for municipal roads, bridges and tunnel projects

● Mining, aggregate yards and heavy-duty vehicle fleets

● Construction waste treatment plants and port logistics yards

● Urban environmental protection construction projects with strict emission standards

(2) Complete Supporting Combinations

① Standard Matching: Main washer + multi-stage sedimentation tank + automatic mud scraper + HDPE circulating pipeline.

② Combined Production Line: Matched with our concrete recycling system and wastewater neutralization equipment to form a full-set green production solution for mixing plants.

③ Optional Accessories: Rainproof canopy, dust suppression device, remote monitoring module, vehicle counting statistics system.

On-site Deployment & Layout Tips

(1) Lane Layout: The washing lane is recommended to be straight with a length of no less than 12m, to ensure complete sensing and full cleaning during vehicle driving.

(2) Foundation Requirements: Standard model needs reinforced concrete foundation; mobile model only requires hardened flat ground, no excavation.

(3) Sewage Discharge: The sedimentation tank is recommended to be built on the side of the lane for convenient sludge cleaning and pipeline layout.

(4) Power Distribution: Independent power distribution box is suggested, equipped with leakage protection to adapt to wet working environment.

(5) Space Reservation: Reserve 1.5m maintenance space around the equipment for daily inspection and parts replacement.

Comprehensive Customer Q&A

Q1: Can the microwave sensor work normally in dusty concrete plants?

A: Yes. Different from infrared sensors, microwave radar is not affected by dust, smoke and strong outdoor light. It maintains stable identification accuracy for a long time in high-dust mixing plant environments.

Q2: Is the nozzle easy to be blocked by cement and fine sand?

A: All spray nozzles are made of tungsten carbide with special anti-blocking holes. Meanwhile, the front-end multi-stage filter intercepts large particles, which effectively avoids clogging. Regular simple cleaning can keep the nozzles unobstructed.

Q3: Can the equipment operate normally in low-temperature areas?

A: The standard model adapts to -10℃ ~ +55℃. We can also configure electric heating components for ultra-low temperature areas below -10℃ to prevent pipeline water freezing.

Q4: What is the daily water consumption?

A: Relying on the 92%+ water recycling rate, the supplementary fresh water per vehicle is very little, which can save more than 80% water compared with direct flushing.

Q5: Does it support 380V 60Hz power supply for the Middle East?

A: All electrical components support 380V/50Hz and 380V/60Hz dual standards, and are optimized for generator power supply, adapting to the power conditions of Saudi Arabia, UAE and other regions.

Q6: Can I view the washing quantity and equipment status remotely?

A: Yes. The optional remote monitoring module supports real-time viewing of operating data, vehicle counting and fault alarm via mobile phones or computers.

Standard Operation & Tiered Maintenance

(1) Pre-operation Check

① Check the water level of the circulating tank and ensure the pipeline is unobstructed and leak-free.

② Inspect the spray nozzles and clean surface sundries.

③ Test the sensor, alarm and protection functions to confirm normal operation.

(2) Tiered Maintenance Plan

① Daily Maintenance

● Clean the surface of the filter screen and remove accumulated sludge.

● Check the operating sound and water pressure of the water pump.

● Clean the floating sludge on the surface of the sedimentation tank.

② Weekly Maintenance

● Tighten all bolts and pipeline joints to prevent water leakage.

● Wipe the microwave sensor and light to ensure sensitive induction.

● Lubricate the rotating parts of the spray arms and mud scraper.

● Calibrate the pressure gauge and control parameters.

③ Monthly Maintenance

● Deeply clean pipeline scaling and residual cement.

● Inspect the wear of nozzles and support frame.

● Test all safety protection and alarm functions.

④ Quarterly Maintenance

● Replace the aging sealing rings of the water pump.

● Overall inspection of the load-bearing platform for deformation.

● Full debugging of the control system.

⑤ Annual Overhaul

● Overall derusting and repainting of the frame.

● Replace severely worn nozzles and vulnerable electrical parts.

● Full-load test and parameter optimization.

(3) Wearing Parts Replacement Cycle

① Spray nozzles: 9 ~ 11 months

② Pipeline sealing rings: 6 ~ 7 months

③ Filter elements: 5 ~ 6 months

④ Water pump wearing parts: 10 ~ 12 months

Customization & Agent Cooperation Policy

(1) Personalized Customization Service

① Parameter Customization: Adjust load, water pressure, lane size and washing time.

② Structural Customization: Add enclosed housing, rain canopy and electric heating system.

③ Function Customization: Equip remote monitoring, vehicle statistics and automatic dosing modules.

④ Appearance: Custom body color.

⑤ Power Customization: Adapt to special voltage and frequency worldwide.

(2) Global Agent Cooperation

We sincerely recruit regional agents and distributors around the world. We provide exclusive regional protection, competitive agent price, complete marketing materials and after-sales technical support.

Support mixed container delivery with our concrete recycling equipment to reduce logistics costs.

Packaging, Logistics & Global Delivery

(1) Packaging: Main frame adopts waterproof tarpaulin + export wooden frame; precision electrical parts, nozzles and sensors are packed in sealed moisture-proof wooden cases.

(2) Trade Terms: Support EXW, FOB, CIF, CFR and other international trade terms.

(3) Logistics: Cooperate with long-term international freight forwarders to deliver goods to Europe, Middle East, Southeast Asia, Africa and other regions safely and on time.

(4) Loading Optimization: Optimize container layout to maximize space utilization and cut transportation costs.

Qualifications & Global After-sales Network

(1) Product Qualifications

The whole machine has passed CE, ISO 9001, ISO 14001 international certifications, and has complete electrical safety inspection reports, factory test documents, which support overseas customs clearance, project bidding and third-party audit.

(2) After-sales Support

① Warranty Period: 1-year full machine warranty.

② Technical Service: 7×24 multilingual remote guidance; provide overseas on-site installation, commissioning and operator training.

③ Lifelong Service: Permanent technical consultation and equipment upgrade suggestions for all cooperative customers.
