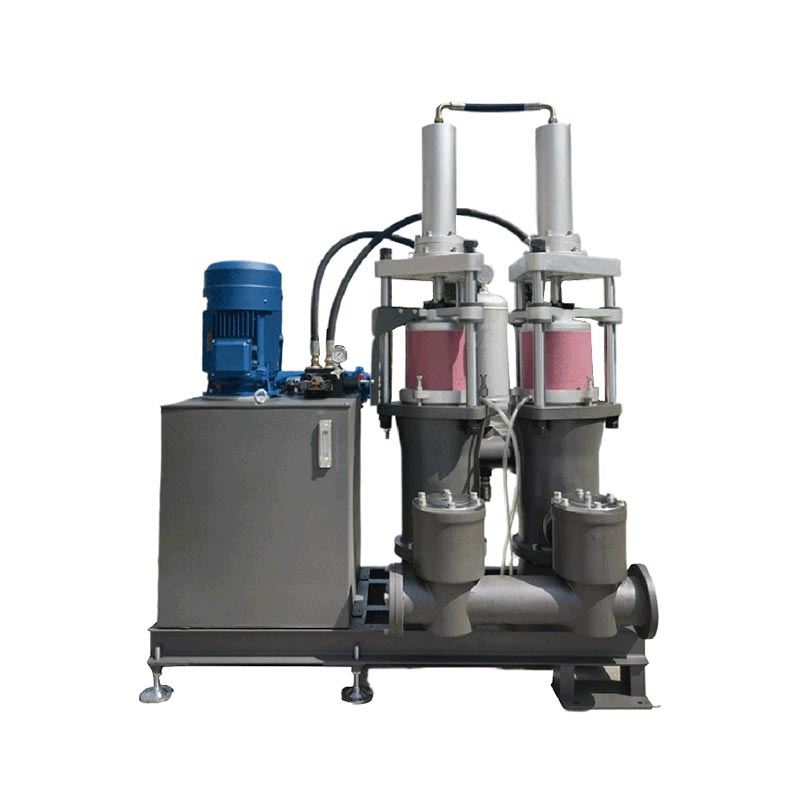

Air Cooled Hydraulic Ceramic Piston Pump For Filter Press

As a factory direct exporter, SINOU specializes in designing, manufacturing and supplying Air Cooled Hydraulic Ceramic Piston Pump For Filter Press.

This air-cooled ceramic piston pump adopts an independent air cooling heat dissipation design, completely getting rid of reliance on cooling water. It runs without water overflow and secondary pollution, making it more adaptable to dry-type workshop and water-shortage working sites.

Built with high-strength hydraulic drive system and high-hardness alumina ceramic plunger, the equipment delivers stable pressure output and strong anti-wear performance. It intelligently matches the filter press feeding rhythm automatically, optimizing operation efficiency while cutting power consumption significantly.

Featuring simple structural layout, fewer consumable parts and user-friendly pressure adjustment, the pump requires minimal daily maintenance and enjoys a service life of up to 10–15 years. We provide OEM, personalized customization and full technical support, making it a premium upgraded alternative to conventional filter press feeding pumps.

Product Core Features

1. Air Cooling Design

Built-in independent air cooling system realizes automatic heat dissipation, no need external cooling water, clean operation and no water overflow pollution.

● Adopts natural air circulation heat dissipation structure, totally free from reliance on cooling water and water pipe layout.
● Suitable for water shortage areas, dry workshops and outdoor installation sites with limited water conditions.
● Low heat generation during long-time high-load operation, effectively avoiding overheating and performance decline.
● Environmental friendly and zero wastewater discharge, realizing clean and green production operation.

2. Super Wear-resistant Ceramic Plunger

Adopts high-purity alumina ceramic plunger with ultra-hard surface, no shear damage to granular materials, suitable for slurry containing sand and solid impurities.

● Made of high-density alumina ceramic material, featuring ultra-high hardness, strong wear resistance and corrosion resistance.
● Smooth surface won’t scratch or damage solid particles, effectively reducing slurry blockage and abrasion loss.
● Long service life, far better than ordinary metal plungers in anti-wear and anti-erosion performance.
● Adapt to high-concentration sludge, sand-containing slurry and slightly corrosive industrial wastewater.

3. Intelligent Constant Pressure Operation

Pressure can be adjusted freely within 0-2.0MPa, keeping constant pressure even when the outlet is closed, stable and reliable for long-term operation.

● Stepless pressure regulation in 0-2.0MPa range, flexible to match different filter press process requirements.
● Automatic constant pressure locking function, maintaining stable pressure even under closed outlet condition.
● Real-time intelligent follow-up with filter press feeding progress, no obvious pressure fluctuation.Support 24-hour continuous unmanned operation, stable performance and low failure rate.

Working Principle

This Air Cooled Hydraulic Ceramic Piston Pump For Filter Press is driven by hydraulic power unit to push double oil cylinders. Two ceramic plungers reciprocate alternately to complete automatic suction and discharge of sludge and slurry. The whole system adopts PLC intelligent control to realize smooth automatic reversing, stable high pressure output and continuous feeding operation.

● Equipped with independent hydraulic power unit, providing steady and sufficient driving power for the whole equipment.
● Double oil cylinders drive two ceramic plungers to do synchronous alternating reciprocating motion, realizing continuous suction and pressure delivery of sludge and slurry.
● Built-in PLC intelligent control system ensures smooth automatic reversing without impact and pressure fluctuation.
● Stable high-pressure output matches the whole filter press feeding process, supporting long-cycle uninterrupted automatic operation.
● Optimized hydraulic loop design reduces heat generation and ensures low failure rate under long-time working condition.

How to Choose the Right Model

You only need to provide filter press filtration area, daily sludge output, required working pressure and running time. Our professional technical team will calculate the matched flow rate and motor power according to your actual site conditions. We recommend the most suitable pump model to ensure high-efficiency feeding, stable filter pressing and energy saving.

● Provide basic parameters including filter press filtration area and chamber volume for accurate flow matching.
● Offer daily sludge treatment capacity and sludge concentration, helping us configure reasonable pump specification.
● Confirm required working pressure and on-site voltage standard to avoid model mismatch.
● Tell us daily continuous running hours and working environment, for more professional customized selection.
● Our technical team calculates matched flow rate, motor power and pressure range according to real working conditions.
● One-stop model recommendation ensures stable feeding effect, perfect filter pressing performance and obvious energy-saving effect.

Product Comparison

1. Energy & Performance Advantage

Compared with ordinary water-cooled pumps and centrifugal slurry pumps, our Air Cooled Hydraulic Ceramic Piston Pump For Filter Press saves over 40% energy. It matches smaller motor power, realizes automatic flow following filter press working condition without obvious pressure loss.

● Adopts optimized hydraulic transmission design, equipped with lower-power motor but outputs stronger conveying efficiency.
● Automatically adjusts flow and pressure following the filter press filling rhythm, avoiding idle running and power waste.
● Stable pressure output without obvious pressure drop in the whole feeding process, ensuring uniform sludge dewatering quality.
● Compared with traditional centrifugal slurry pumps, it has higher operation efficiency and far better energy-saving performance.
● Air cooling structure keeps the machine running at low temperature, no power attenuation caused by overheating during long-time operation.

2. Maintenance & Cost Advantage

The Air Cooled Hydraulic Ceramic Piston Pump For Filter Press has simple structure and few vulnerable parts. Wearing parts are easy to disassemble and replace, with long replacement cycle, greatly reducing annual operation and maintenance cost.

● Integral simplified mechanical layout, fewer internal complex components, lower overall failure rate.
● Standardized universal vulnerable parts, easy to purchase and replace in the market, no need for special customized accessories.
● Ceramic plunger and key parts feature super wear resistance, long service life and prolonged replacement cycle.
● Simple disassembly and assembly structure, no need for professional tools and complex maintenance steps.
● Effectively saves labor time, spare parts cost and daily management expenses, bringing better economic benefits for long-term use.

Common Problems & Solutions

1. Pump No Pressure or Insufficient Pressure

● Problem: The Air Cooled Hydraulic Ceramic Piston Pump For Filter Press runs normally but cannot build up pressure, or the pressure is too low to feed the filter press.
● Solution: Check hydraulic oil level and oil quality; replace deteriorated hydraulic oil in time. Inspect hydraulic valve block for jamming and clean internal impurities. Confirm ceramic plunger and sealing ring are not severely worn, replace damaged seals and wearing parts.

2. Unstable Pressure & Pressure Fluctuation

● Problem: Working pressure rises and falls frequently, affecting filter press feeding effect.
● Solution: Check whether the pipeline is blocked or leaking. Adjust PLC control parameters to keep stable reversing frequency. Check air cooling system for poor heat dissipation causing hydraulic oil overheating; clean cooling dust and ensure normal air circulation.

3. Pump Runs No Slurry Discharge

● Problem: The equipment operates normally, but no sludge or slurry is delivered.
● Solution: Check the inlet pipeline for air leakage or blockage. Discharge air inside the pump body to avoid air lock. Clean sundries at the inlet to prevent material clogging, and check whether the steering of the motor is correct.

4. Excessive Running Noise & Vibration

● Problem: The pump produces loud noise and strong vibration during operation.
● Solution: Check anchor bolts for looseness and fasten all mounting parts. Inspect hydraulic station for abnormal noise caused by oil pump wear. Confirm plunger reciprocating operation is not stuck; adjust installation level to reduce mechanical vibration.

5. Poor Air Cooling & High Body Temperature

● Problem: Air cooling effect is poor, pump body and hydraulic oil temperature rise too fast.
● Solution: Clean dust, fiber and dirt on the air cooling fin surface regularly. Ensure the installation position is ventilated without shelter. Avoid long-term full-load continuous operation unreasonably; check cooling fan for damage and replace it if failed.

6. Short Service Life of Sealing Parts

● Problem: Sealing rings and wearing parts are easy to aging and damage with short replacement cycle.
● Solution: Use original standard sealing accessories. Avoid conveying over-concentration slurry and large granular impurities. Keep hydraulic oil clean and prevent impurities from abrading seals.

7. Automatic Reversing Failure

● Problem: The Air Cooled Hydraulic Ceramic Piston Pump For Filter Press cannot reverse automatically, runs in one direction or stops suddenly.
● Solution: Check PLC control circuit and sensor line for loose contact. Reset control parameters; clean electromagnetic valve core for jamming. If electrical parts are damaged, replace matching control components in time.

After-sales Service

1. Warranty Service

We provide half-year quality warranty for the whole machine from the date of delivery. Within the warranty period, any quality problem caused by manufacturing will be repaired and replaced free of charge.

2. Free Installation Service

We support professional on-site installation and commissioning service. Our technical personnel arrive at the site to complete equipment installation, debugging and operation guidance, ensuring the machine runs normally.

3. Technical Support

Lifelong online technical support is provided. We can offer remote guidance for operation, maintenance and fault troubleshooting at any time.

4. Spare Parts Supply

Original standard spare parts are supplied at factory price all the year round, with fast delivery and low later maintenance cost.

5. Lifelong Maintenance

After the warranty period, we still provide preferential lifelong maintenance service, to solve all your equipment running problems.

On-Site Installation Diagram

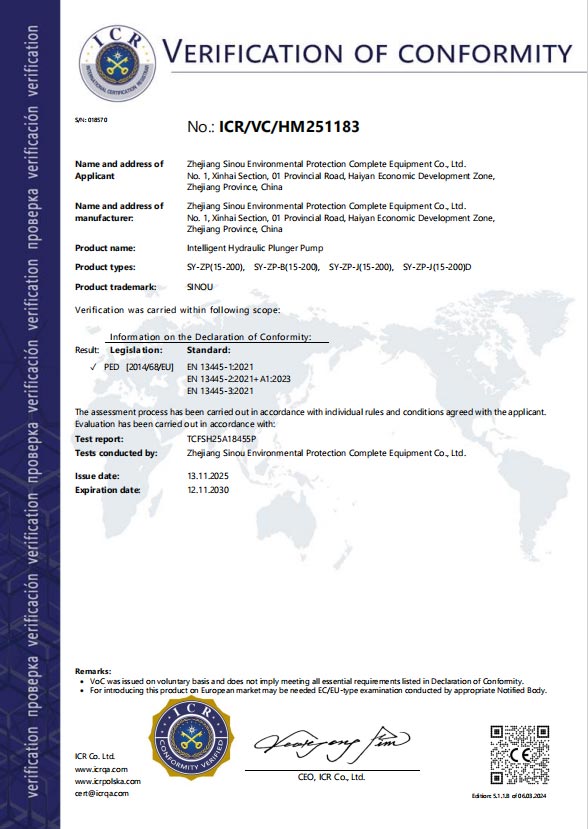

Qualification Certification Introduction

Our Air Cooled Hydraulic Ceramic Piston Pump For Filter Press has obtained authoritative ICR Verification of Conformity (PED Certification).

It strictly complies with EU PED [2014/68/EU] Directive and European standards including EN 13445 1:2021, meeting strict safety requirements for European pressure equipment.

With this official certification, our pump is eligible for EU market access, ensuring safe and stable performance under high pressure working conditions. It supports global sales, customs clearance and overseas project acceptance.

We also provide professional after sales service: 6 month whole machine warranty and free  installation & commissioning, offering reliable one stop solutions for global buyers.
