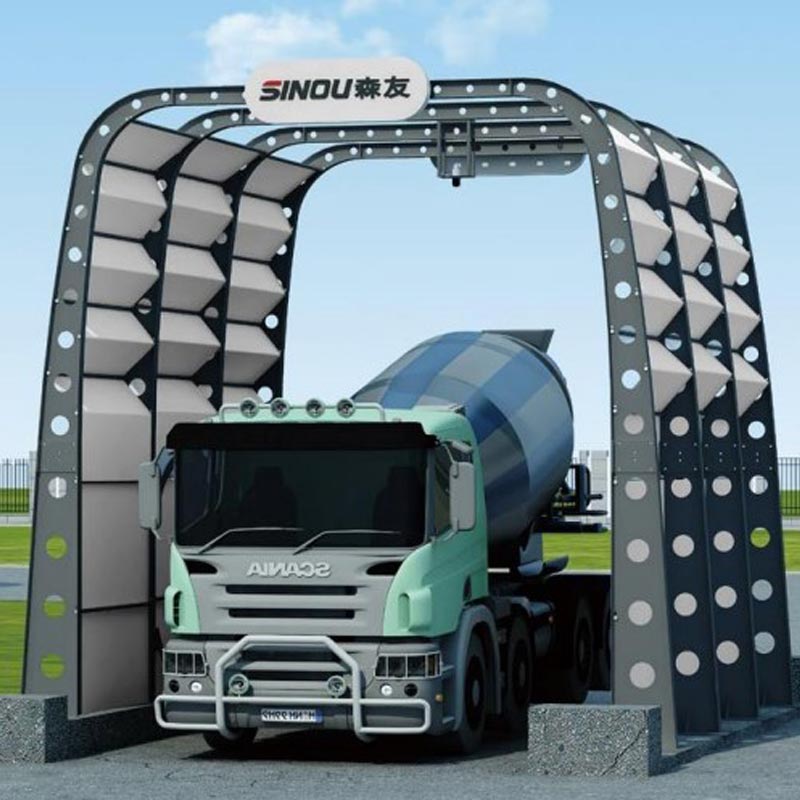

Professional Mixer Truck Washing Machine Manufacturer

As a manufacturer and supplier in China, SINOU's Fully Automatic Mixer Truck Washing Machine is a dedicated high-pressure cleaning device tailor-made for ready-mix concrete mixer trucks and various heavy engineering vehicles. Different from ordinary civilian car wash equipment, it adopts touchless high-pressure spray technology and load-bearing reinforced structure, targeting thick cement slurry, sticky mud and dust attached to mixer truck tires, chassis, mixing drum and feed hopper.

Equipped with an integrated circulating water treatment system, this machine realizes water recycling and zero sewage discharge. It supports automatic induction startup, full-range dead-angle cleaning and fast cycle operation. It is an essential environmental protection and efficiency-improving device for concrete batching plants, construction yards, mining areas and large vehicle fleets.

Our products have been widely exported to the Middle East, Europe, Southeast Asia and other regions, and have passed multiple international certifications. They are well received by customers for stable performance, water-saving and environmental protection, and low failure rate.

How It Works & Operational Process

This mixer truck washing machine adopts infrared induction + PLC intelligent control, combined with multi-angle high-pressure spray and circulating water filtration technology. The full automatic working cycle is as follows:

(1) Vehicle Sensing & Startup: When the mixer truck drives into the designated washing area, the infrared sensor automatically identifies the vehicle and triggers the whole system to start. The driver does not need to get off the truck.

(2) 360° High-Pressure Cleaning: Multi-directional nozzles on both sides, bottom and top spray high-pressure water jets simultaneously. The high-speed water flow strips cement dirt, mud and dust from the tires, chassis, car body and mixing drum.

(3) Sewage Collection & Recirculation: The washed sewage flows into the underground sedimentation tank and multi-stage filter device. After removing mud and sundries, the clean water is pumped back to the high-pressure water pump for recycling.

(4) Auto Shutdown & Reset: After the preset cleaning duration ends, the spray system stops automatically. The vehicle drives away, and the whole machine returns to the standby state, waiting for the next vehicle.

(5) The whole process is unmanned, with a single cleaning cycle controlled within 60–90 seconds, which greatly improves the vehicle passing efficiency of the mixing plant.

Build & Component Details

(1) Reinforced Bearing Base & Main Frame

The load-bearing base is made of thickened national standard steel plate + reinforced I-beam, with overall anti-rust treatment. The standard load capacity reaches 80–120 tons, which can fully adapt to fully loaded mixer trucks.

The overall frame adopts welded structure with high rigidity, no deformation after long-term rolling of heavy vehicles. The outer shell is made of corrosion-resistant steel plate, suitable for outdoor long-term wind and rain exposure.

(2) High-Pressure Water Supply & Spray Assembly

Equipped with industrial-grade high-pressure water pump group, the stable water pressure is maintained at 100–120 bar. The whole machine is equipped with dozens of directional spray nozzles, which are scientifically arranged around, bottom and top to form a three-dimensional spray network.

The nozzles are made of wear-resistant alloy, not easy to block, and can clean the tire tread, chassis gap and mixing drum without dead angles.

(3) Sensing & Intelligent Control Unit

Adopts high-sensitivity infrared radar sensor, with strong anti-interference ability, not affected by light and dust. The core control part is a dedicated PLC controller + touch panel. Users can freely set cleaning time, water pressure and spray mode.

It has built-in functions such as overload protection, pump dry-running protection and fault self-alarm, which ensures safe operation. It can also be connected to the factory central control system for remote monitoring.

(4) Recirculating Water & Sludge Removal Unit

Matching multi-stage sedimentation tank and automatic mud scraper. The sewage generated by cleaning is filtered and precipitated layer by layer. The sludge is regularly discharged by the mud removal device, and the clean water is recycled.

The water recycling rate is over 90%, which saves a lot of tap water. The pipeline is made of high-pressure resistant HDPE pipe, which is anti-corrosion and anti-scaling.

(5) Splash Guard & Enclosure System

Optional fully enclosed splash-proof enclosure to prevent high-pressure water and mud from splashing around, keep the site clean and meet local environmental inspection requirements. The enclosure is equipped with quick-assembly structure, easy to disassemble and transport.

(6) Auxiliary Fittings & Detection Parts

Equipped with water level gauge, pressure gauge, filter screen and other auxiliary detection and filtering parts. All electrical components are waterproof and dustproof, adapting to harsh outdoor working conditions.

Key Strengths & Unique Features

(1) Super Load-bearing & Durable Structure: Reinforced heavy-duty design, load capacity up to 120 tons, specially designed for frequent rolling of full-load mixer trucks. The overall structure is sturdy and durable with low failure rate.

(2) Touchless Full-range Cleaning: High-pressure three-dimensional spray, no contact with brushes, which avoids scratching the car body and mixing drum paint. The mud removal rate of tires and chassis is over 98%.

(3) Intelligent Unmanned Operation: Infrared automatic induction, one-button parameter setting. The driver can finish cleaning without getting off the truck, saving labor and improving vehicle passing efficiency.

(4) Water-saving & Eco-friendly Circulating System: Built-in multi-stage sedimentation and filtration device, water recycling rate >90%, greatly reducing water costs and realizing zero sewage discharge.

(5) Fast Cleaning Speed: A single vehicle only takes 60–90 seconds, supporting 60+ vehicles per hour, perfectly matching the high-frequency vehicle access of large mixing plants.

(6) Strong Environmental Adaptation: All components are waterproof, dustproof and anti-corrosion. It can operate stably for long time in high-dust, muddy outdoor environments, adapting to high temperature and rainy weather.

(7) Easy Installation & Flexible Layout: Divided into foundation type and foundation-free type. The foundation-free model does not require complicated civil works, which can be quickly put into use and is convenient for site relocation.

(8) Low Comprehensive Maintenance: The nozzle is not easy to block, the vulnerable parts are few, and the daily maintenance is simple, which reduces the long-term operating cost.

Product Range & Technical Specs

(1) Product Range

① Standard Foundation-Mounted Washer

Requires simple civil foundation, super load-bearing, stable operation. Suitable for fixed large concrete batching plants and long-term operating vehicle fleets. It is the most widely used standard model.

② Mobile Foundation-Free Washer

No need to dig sedimentation tanks and embedded parts. The whole machine is integrated, which can be hoisted and moved as a whole. Ideal for temporary construction yards, mobile mixing stations and frequently replaced sites.

③ Full Enclosed Wash System

Add a fully enclosed splash-proof enclosure on the basis of the standard model to prevent water and mud splashing. Suitable for urban mixing plants and areas with strict environmental requirements.

④ Long Tunnel Type Washer

Extended spray channel, suitable for ultra-long mixer trucks and multi-vehicle continuous flow operation, for large-scale centralized vehicle washing areas.

(2) Main Technical Specs

Comparative Analysis with Peer Products

We compare our mixer truck washing machine with brush-type car washer and ordinary low-pressure site washer from multiple dimensions to highlight differentiated strengths.

(1) Touchless High-pressure Washer VS Brush-type Vehicle Washer

(2) High-pressure Circulating Washer VS Ordinary Low-pressure Site Washer

Summary

For concrete mixer trucks with cement slurry and thick mud, the touchless high-pressure circulating washing machine is the optimal choice. It has obvious advantages in cleaning effect, vehicle protection, water saving and environmental protection, and long-term comprehensive cost performance is far higher than traditional equipment.

Application & Supporting Setups

(1) Main Application Scenarios

● Fixed & mobile concrete batching plants (core application)

● Municipal construction sites, road and bridge engineering yards

● Mining, sand and gravel plants and large material yards

● Large engineering vehicle fleets and logistics parks

● Waste treatment plants and port freight terminals

(2) Complete Supporting Setups

① Water Circulation Auxiliary: Multi-stage sedimentation tank, automatic mud scraper, filter screen assembly

② Pipeline Matching: High-pressure resistant HDPE water pipes, valves and pressure gauges

③ Extended Accessories: Fully enclosed splash-proof enclosure, rainproof canopy, remote monitoring module

④ Combined Equipment: Matched with our sand-gravel separator and wastewater treatment system to form a full-set environmental protection solution for mixing plants

Product Selection Guidance

(1) Select load capacity according to vehicle weight: For full-load mixer trucks above 50 tons, prefer the 120-ton reinforced model to avoid structural deformation.

(2) Determine installation type according to site conditions: Fixed mixing plants choose foundation type; temporary sites or frequently moved equipment choose foundation-free mobile type.

(3) Match configuration based on environmental requirements: Urban areas and regions with strict environmental inspection are equipped with fully enclosed splash-proof enclosure.

(4) Confirm power standard: Select 380V/60Hz model for Middle East, Saudi Arabia and other regions to adapt to local generator power supply.

(5) Estimate traffic volume: For fleets with more than 60 vehicles per hour, choose an enhanced high-flow pump set to ensure cleaning efficiency.

Popular Questions & Answers

Q1: Will the high-pressure water jet damage the mixer truck's paint and mixing drum?

A: No. We adopt touchless spray technology without any physical friction. The high-pressure water flow only flushes dirt, which will not scratch the paint and metal surface. It is specially optimized for the frequent cleaning demands of mixer trucks.

Q2: Is the circulating water system easy to be blocked by cement sludge?

A: The system is equipped with multi-stage intercepting filter screens and automatic mud scrapers. The sludge is regularly discharged, and the nozzle adopts anti-blocking alloy design. Long-term stable operation can be realized with daily simple cleaning.

Q3: Can it work normally in rainy and high-temperature outdoor environments?

A: All electrical components and the overall structure are designed with waterproof, dustproof and high-temperature resistance. It can operate stably in all-weather outdoor environments, adapting to desert high temperature and rainy weather in the Middle East.

Q4: Does the equipment require complicated civil construction?

A: We provide two options: foundation type and foundation-free type. The foundation-free model can be put into use after flat ground placement without excavation, which saves construction time and cost.

Q5: What is the water consumption per vehicle? Is it water-saving?

A: Relying on the circulating system, the actual fresh water consumption per vehicle is very low. The water recycling rate is over 90%, which can greatly reduce the water cost of the mixing plant.

Q6: Can the equipment realize remote monitoring and data statistics?

A: Yes. We can customize the remote monitoring module. Users can view the equipment operating status, washing quantity and fault information in real time to realize intelligent management of the fleet.

Operation & Maintenance Protocols

(1) Standard Operation Rules

① Before startup, check the water level of the sedimentation tank, the tightness of the pipeline and the nozzle for blockage.

② After confirming no abnormality, turn on the automatic induction mode, and the vehicle drives slowly into the washing area.

③ Do not park the vehicle in the washing area for a long time to avoid long-term pressure on the load-bearing platform.

④ After daily work is completed, flush the pipeline and nozzle with clean water to prevent cement residue from solidifying.

(2) Hierarchical Maintenance Schedule

① Daily Maintenance

● Clean the sundries and sludge on the surface of the filter screen to ensure smooth water flow.

● Check whether the nozzle is blocked and clean it in time.

● Observe the water pressure and operating sound of the water pump, and deal with abnormalities immediately.

● Clean the sludge in the sedimentation tank regularly according to the mud accumulation.

② Weekly Maintenance

● Tighten all pipeline joints and connecting bolts to prevent water leakage and structural loosening.

● Inspect the infrared sensor to remove surface dust and ensure sensitive induction.

● Lubricate the moving parts of the automatic mud scraper.

● Calibrate the water pressure gauge and control parameters.

③ Monthly Maintenance

● Overall inspection of the load-bearing platform and frame for deformation or welding cracks.

● Deeply clean the interior of the circulating tank and pipeline to remove scaling.

● Test the overload, alarm and other protection functions of the control system.

④ Quarterly Maintenance

● Inspect the aging of the water pump and electrical lines, and replace the aging parts in a timely manner.

● Comprehensive debugging of the whole machine's operating parameters to restore the rated performance.

⑤ Annual Overhaul

● Overall derusting and repainting of the frame and load-bearing platform.

● Full inspection and replacement of severely worn nozzles and sealing parts.

● System full-load test operation to eliminate potential faults.

(3) Wearing Parts Replacement Cycle

① Spray nozzles: 8 ~ 10 months

② Pipeline sealing rings: 6 ~ 8 months

③ Filter screen: 5 ~ 7 months

④ Water pump vulnerable accessories: 10 ~ 12 months

Custom

We provide full-set personalized customization services for global clients:

① Load & Size Customization: Customize 80/120-ton load-bearing models and overall dimensions according to vehicle size and site space.

② Function Customization: Add remote monitoring, data statistics, disinfection spray and other extended functions.

③ Structure Customization: Customize fully enclosed enclosure, rainproof canopy and mobile mobile chassis.

④ Parameter Customization: Adjust water pressure, cleaning time and spray range.

⑤ Appearance: Customize body color.

⑥ Power Customization: Adapt to 50Hz/60Hz and special voltage standards.

⑦ All customized products comply with international standards and provide complete technical drawings.

Global Delivery

① Trade Terms: Support EXW, FOB, CIF, CFR and other international mainstream trade terms.

② Logistics Cooperation: Cooperate with long-term reliable international freight forwarders to deliver goods to Europe, the Middle East, Southeast Asia, Africa and other regions safely and on time.

③ Container Loading Optimization: Optimize the layout to save customers' shipping costs.

Certifications & Global Support

(1) Qualification Certifications

The whole machine has passed CE, ISO 9001, ISO 14001 and other international authoritative certifications. Complete factory inspection reports, electrical safety certificates and technical documents are provided to support overseas customs clearance, project bidding and third-party inspection.

(2) After-sales Support

① Warranty Period: 1-year full machine warranty.

② Technical Support: 7×24 hours multilingual remote video guidance. Provide overseas on-site installation, commissioning and operator training.

③ Spare Parts Supply: Global overseas warehouse layout, complete spare parts can be delivered quickly to reduce equipment downtime.

④ Lifelong Service: Permanent technical consultation and equipment upgrade suggestions for all cooperative customers.
