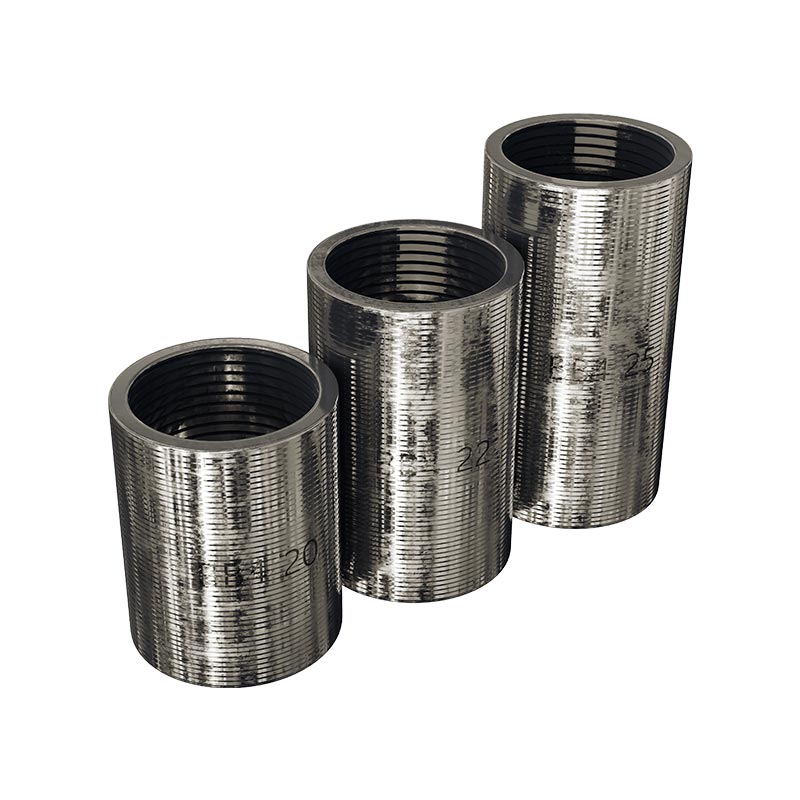

Durable Reinforcing Bar Socket Manufacturer

SINOU is a professional factory & global supplier of industrial Reinforcing Bar Socket for all types sludge dewatering wastewater equipment. This double inner and outer thread reinforcing bar socket acts as transition repair bushing for damaged threaded holes on filter press, sludge feeding pump, mixing agitator and pipeline valve base.

Unlike single extrusion sleeves without threads, our product adopts integrated CNC dual thread forming design, which can reconstruct standard screw holes without replacing expensive equipment casting bases. Multiple raw material grades and anti-rust surface processes are available to match neutral, weak acid and alkaline sludge working environments of mixing plants, municipal sewage stations and chemical factories.

It effectively avoids thread slipping, tooth stripping and metal corrosion caused by long-term vibration and sewage splash, greatly cutting regular spare parts replacement and equipment shutdown loss for global environmental engineering clients.

Core Structure & Machining Craft Details

Every SINOU Reinforcing Bar Socket undergoes one-time integrated blank processing, all thread surfaces pass full finishing treatment to reduce sludge adhesion:

(1) Two Main Outer Profile Types

① Smooth cylindrical outer sleeve: compact outer diameter, fit narrow installation gaps inside equipment cabinet, widely used for small dosing machine and mixer base tiny holes

② Middle hexagon outer structure: reserved flat clamping surface for torque wrench, no sliding during tightening operation, ideal for filter press large fixture and sludge pump flange heavy-load positions.

(2) Integrated Dual-layer Through Thread Design

Full penetration inner & outer thread hollow structure, uniform wall thickness from 3mm to 12mm without thin weak areas. Outer thread locks into equipment base hole, inner thread cooperates with standard fastening bolts, realize different thread size conversion without modifying equipment casting. 30° chamfer on both thread ends eliminates sharp burrs, prevent thread tooth collapse during forced assembly.

(3) Precision CNC Thread Rolling Technology

All inner and outer threads are one-step rolling molding, tolerance grade 4H/4g~6H/6g, pitch error controlled below ±0.02mm. Optimized arc tooth root increases bolt contact area, improve anti-vibration performance under frequent start-stop of sludge pumps and hydraulic filter presses. Inner hole fine polishing removes micro burrs to avoid sludge particle jamming thread gaps.

(4) Diversified Raw Material Selections

● ASTM A105 Carbon Steel: cost-effective for neutral sewage pH 4~11

● SUS304 Stainless Steel: resist slight chloride & weak alkaline sludge splash

● SUS316L Alloy Steel: customized for strong acid chemical wastewater with heavy corrosion

(5) Graded Anti-corrosion Surface Treatments

● Hot-dip galvanizing (carbon steel): zinc layer ≥85μm, pass 72h neutral salt spray test

● Pickling passivation (304 stainless steel): reduce organic sludge adhesion

● Nickel composite sealing (316 alloy): reach 500h salt spray standard for harsh chemical conditions

● Optional pre-coated anti-seize grease for high-temperature sludge equipment

Internal & External Thread Working Mechanism

(1) Thread Transition Conversion Mechanism

When equipment base hole thread specification cannot match fastening bolts, install a reinforcing bar socket as intermediate transition piece, no need to ream or weld equipment castings, fast on-site transformation without long production halt.

(2) Damaged Hole Restoration Function

For rusted, stripped and slipped original screw holes on pump and filter press bases, screw in matching Reinforcing Bar Socket to rebuild complete standard inner thread, abandon high-cost whole base replacement and slash maintenance expenditure by over 55%.

(3) Vibration Buffering & Medium Isolation Logic

The thick sleeve wall disperses bolt tightening stress, buffer periodic vibration generated by sludge pump continuous operation. Metal isolation layer separates sewage moisture, alkali and silt from direct contact with equipment base metal, slow down base corrosion and extend full machine service cycle.

Complete Technical Specification Parameter Table

How To Pick Suitable Reinforcing Bar Socket For Your Equipment?

4 core selection standards for overseas engineering buyers to avoid model mismatch:

(1) Confirm Sewage Medium Corrosion Degree

Neutral mixing plant washing sludge: select hot galvanized carbon steel

Municipal sewage with trace salt: choose SUS304;

Chemical strong acid sludge: SUS316 alloy material.

(2) Measure Original Base Thread Size

Record inner hole depth, original thread pitch and bolt specification, confirm inner & outer thread size to match, avoid mismatched assembly.

(3) Distinguish Equipment Load & Vibration Intensity

Heavy-load filter press fixture, sludge pump flange: pick middle hexagon thick wall Reinforcing Bar Socket for high torque tightening;

Small dosing tank, agitator light base use thin smooth cylindrical type.

(4) Confirm On-site Maintenance Cycle Requirement

Projects requiring long service cycle without frequent replacement select stainless steel series; short-cycle temporary construction mixing stations can choose cost-effective carbon steel type.

Reinforcing Bar Socket VS Ordinary Squeezing Sleeve Comparison Table

Matching Wastewater Treatment Equipment List

SINOU Reinforcing Bar Socket is universal matching repair fitting for full set sludge dewatering lines, hyperlink corresponding product pages:

(1) Membrane Filter Press: repair filter plate clamping holes, feeding port fixture thread, reduce filtrate leakage

(2) Mixer Agitator: restore rusted tank mounting base screw holes, prevent stirring shake loose

(3) Sludge Feeding Pump: fix flange & bearing seat thread abrasion from sand sludge vibration

(4) HDPE Slurry Pipeline: pipeline flange transition thread repair for circulating water pipes

(5) Spray Column: neutralization liquid tank base thread reconstruction

(6) Automatic Flocculant Dosing Machine: cabinet fixed hole anti-corrosion renovation

On-site Installation Standard & Operation Notes

(1) Pre-install Preparation

① Thoroughly clean sludge, rust scale and metal burr inside equipment base hole with steel brush and compressed air, foreign objects cause incomplete thread engagement.

② Measure hole depth and thread specification to select matching model, prohibit forced assembly of mismatched sizes.

(2) Standard Installation Steps

① Screw Reinforcing Bar Socket into base hole vertically with torque wrench, control tightening torque according material parameter table. Over-tightening crack casting base, insufficient torque lead to loose under vibration.

② After sleeve locking, screw matched standard bolt into inner thread, test tightness manually.

③ For heavy-load pump & filter press positions, smear anti-seize grease on inner thread to prevent sludge crystallization bonding.

(3) Routine Use Precautions

① Large sewage production line inspect sleeve tightness every 15 working days, replace deformed & corroded products timely.

② Chemical high-corrosion workshop coat anti-rust lubricant on exposed threads monthly.

③ If equipment shut down over 30 days, daub anti-rust grease on all sleeve threads and cover with waterproof film.

Routine Inspection & Tier Maintenance Schedule

(1) Daily Shift Check

Visually check exposed threads for rust and sludge accumulation, wipe surface dirt timely.

(2) Weekly Maintenance

Tighten loose reinforcing bar sockets on pump and filter press key positions, clean thread gap silt.

(3) Monthly Deep Inspection

Take partial sampling to check galvanized/stainless anti-corrosion layer peeling condition, replenish anti-seize grease.

(4) Quarterly Full Inspection

Remove partial sleeves to check inner thread wear degree, replace aging corroded fittings in batch.

(5) Annual Overhaul

Comprehensive inspection of all equipment base reinforcing bar sockets and unified batch replacement of expired spare parts.

(6) Wearing Parts Reference Replacement Cycle

Carbon steel Reinforcing Bar Socket: 8 ~ 12 months

SUS304 Reinforcing Bar Socket: 20 ~ 28 months

SUS316 alloy Reinforcing Bar Socket: 36 ~ 48 months

Factory Strict Raw & Finished Product QC Standards

(1) Raw Material Inspection

All steel bars pass spectral composition test, reject recycled scrap iron; tensile test to guarantee material tensile index meets standard.

(2) Machining Size Inspection

Digital caliper & thread gauge full detection, thread pitch and wall thickness error strictly controlled within tolerance range.

(3) Anti-corrosion Coating Test

Random salt spray aging test per batch, unqualified galvanized / passivation products reprocessed.

(4) Vibration Simulation Test

24h continuous alternating vibration test to verify anti-loose thread performance under pump operating state.

(5) Finished Batch Sampling

5% random inspection for each production batch, all indexes retested before warehouse delivery.

Overseas Engineering Application Cases

Case 1: Large Concrete Mixing Plant, Saudi Arabia

Project demand: Repair rusted base threads of membrane filter press and sludge feeding pump under desert high-sand alkaline wastewater.

Solution: Adopt hot galvanized carbon steel reinforcing bar socket in full M8-M32 specifications.

Actual Effect: Equipment thread replacement frequency reduced from monthly to once every 10 months, annual maintenance cost cut by 60%, stable operation under high temperature desert environment for 3 years.

Customer Feedback: The dual thread reinforcing bar socket is easy to install and reusable, save a lot of base casting replacement expense.

Case 2: Municipal Sewage Treatment Station, Southeast Asia

Project demand: Renovate old belt dewaterer and mixer mounting holes with slight chloride domestic sewage.

Solution: SUS304 passivated Reinforcing Bar Socket full set matching.

Actual Effect: No thread slipping or corrosion appeared after 2 years continuous operation, sewage leakage eliminated completely.

Export Packaging & Global Logistics Rules

(1) Packaging Standard: Reinforcing Bar Sockets sorted by specifications, sealed waterproof PE bags with anti-rust grease coating inside; small batches packed cartons with desiccant, large bulk goods fixed export wooden frames to avoid collision scratch threads during sea transportation. Matching bolts & anti-seize lubricant packed independent accessory bags.

(2) Applicable Trade Terms: EXW, FOB, CFR, CIF, DAP all supported

(3) Logistics Arrangement: Long-term cooperative freight forwarders deliver to Middle East, Europe, Southeast Asia, Africa; mixed loading with filter press, agitator and pipeline accessories to save container freight.

Factory Certifications & After-sales Support

(1) Complete Qualifications: CE mechanical safety certification, ISO9001 quality management system certificate, full batch factory inspection reports for overseas tender & customs clearance.

(2) Warranty Policy: 12-month quality warranty for all reinforcing bar sockets against factory machining defects; damage from wrong selection & improper installation not covered.

(3) Global After-sales Service: 7×24 multilingual remote installation guidance; provide complete specification selection suggestions free of charge for project engineers; fast global spare parts delivery for urgent orders.
