Quality and Durable Mixer Agitator Factory

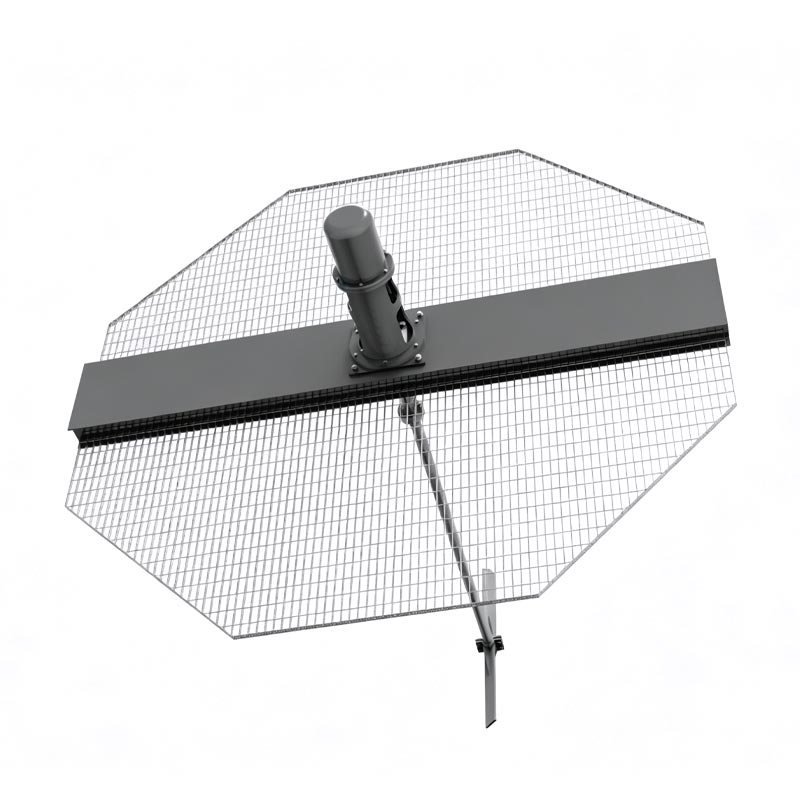

SINOU mixer agitator is a customized top-entry vertical industrial stirring mixer developed exclusively for harsh concrete plant wastewater working conditions, focusing on solving bottom sediment hardening, uneven chemical agent mixing and poor water circulation balance existing in sewage reaction tanks, buffer tanks and dosing tanks.

Unlike general-purpose agitators sold on the market that only adapt to clean water mixing, this professional mixer agitator is upgraded aiming at high-alkali wastewater, desert fine sand and cement suspended sludge, adopting low-speed axial flow stirring mode without breaking sludge flocs.

It can operate stably 24 hours a day without shutdown, ensuring uniform water quality in the whole tank and improving the overall treatment efficiency of the supporting environmental protection system.

This mixer agitator is a necessary auxiliary stirring device matched with spray column, HDPE slurry pipe and heavy duty mixer truck washing machine, forming a complete closed-loop wastewater treatment stirring and conveying system for mixing stations.

Unique Fluid Mixing Working Principle

Many overseas project engineers raise the question: Why cannot high-speed stirrers replace professional low-speed mixer agitator for sewage sludge treatment?

High-speed stirring equipment will produce strong water shearing force, which will destroy the flocculent structure of settled sludge, leading to re-suspension of fine sediment and failure of subsequent sedimentation and filtration procedures.

Our SINOU mixer agitator adopts axial flow low-speed circulating stirring principle with gentle fluid pushing power, and the complete working flow is as follows:

(1) The waterproof vertical motor transmits stable power to the high-precision helical gear reducer to reduce output speed and amplify output torque;

(2) The integrated long stirring shaft drives double-layer axial flow impellers to rotate slowly vertically inside the sewage tank;

(3) The rotating blades push the tank bottom sludge to generate upward vertical water flow and surrounding horizontal circulating water flow;

(4) Eliminate all stirring dead corners at tank bottom, tank wall and liquid surface to prevent hard sludge crust;

(5) Realize full mixing of alkaline sewage and neutralization medicament, cooperate with overall water circulation pipeline to stabilize water inlet quality of subsequent spray column;

(6) Whole operation process has no water splash, no secondary sludge disturbance, and matches continuous working rhythm of mixing plant sewage stations perfectly.

Complete Structural Components & Material Details

All core parts of SINOU mixer agitator are selected and optimized targeting long-term erosion of alkaline sewage and sandy sludge, abandoning ordinary carbon steel vulnerable to corrosion, and each component has clear functional positioning:

● IP65 Fully Waterproof Vertical Motor

Adopt full enclosed waterproof and dustproof motor housing, suitable for outdoor humid and foggy sewage workshop environment. Support global dual frequency power supply 380V 50Hz / 380V 60Hz, compatible with unstable generator power supply widely used in Middle East desert construction sites. Optional explosion-proof motor for special waste gas enclosed workshops.

● Helical Gear Heavy-duty Reducer

Different from ordinary cycloidal reducers with high failure rate, helical gear reducer runs more smoothly, with stronger overload resistance. It can cope with instantaneous heavy load impact caused by sudden thick sludge accumulation at tank bottom, effectively protecting motor from burnout, with ultra-low noise and no oil leakage for long-term operation.

● One-piece Integrated Stainless Steel Stirring Shaft

Adopt SUS304 or upgraded SUS316L integrated seamless stirring shaft, no intermediate flange splicing. Avoid shaft swing, shaft vibration and shaft breakage caused by long-term rotation, greatly improving overall equipment stability.

● Axial Flow Large-area Curved Impeller

Adopt special axial flow blade instead of ordinary radial straight blade. It focuses on pushing overall liquid circulation rather than local liquid cutting, with larger stirring coverage area, stronger bottom sludge pushing force and lower energy consumption.

● Triple Independent Mechanical Seal System

Three-layer mechanical seal structure is installed at the shaft penetration position, which can effectively block sewage and fine sand from penetrating into reducer and motor, solving the most common water leakage and motor damage failure of traditional agitators.

● Integrated Tank-edge Fixed Bracket

Thickened carbon steel painted anti-rust bracket, integrated welding forming, directly fixed on tank top without tank body punching damage. Fast installation, firm fixation, free of overall displacement during long-term stirring vibration.

● Optional Frequency Conversion Control Cabinet

Match independent frequency converter to adjust stirring speed freely according to sludge concentration, realizing energy-saving operation under different working loads.

Core Competitive Advantages Over Ordinary Market Agitators

Combined with actual operation feedback of hundreds of mixing plant sewage projects worldwide, we summarize 7 exclusive highlights of SINOU mixer agitator, completely differentiated from generic industrial agitators:

(1) Sludge Flocculation Protection Technology

Low-speed gentle stirring never damages formed sludge flocs, ensuring stable follow-up sedimentation and sludge dewatering effect, which is the core advantage for sewage treatment scenarios.

(2) High Anti-corrosion Whole Machine Configuration

All liquid-contact parts use stainless steel materials, resisting long-term erosion of high PH alkaline sewage, service life 2.5 times longer than ordinary carbon steel agitators.

(3) Zero Dead Angle Full-tank Stirring

Double-layer axial flow impeller matches customized shaft length, covering full tank depth, completely solving stubborn bottom sludge hardening problem of concrete sewage tanks.

(4) Strong Overload Anti-blocking Performance

Heavy-duty reducer supports 150% instantaneous overload operation, no stuck failure even if a large amount of sediment accumulates at the tank bottom in a short time.

(5) 24/7 Uninterrupted Continuous Operation

Professional industrial-grade design, no need for regular shutdown heat dissipation, adapting to non-stop working mode of sewage treatment stations all year round.

(6) Low Operation & Maintenance Cost

Fully sealed drive structure, no regular lubricating oil replacement needed; wearing parts are few, greatly reducing later manual maintenance cost.

(7) Seamless System Linkage

Support PLC signal docking with overall wastewater control system, realizing automatic start and stop linkage linked with liquid level sensor data.

Full Series Technical Parameter Specification Table

How to choose the right mixer agitator for your wastewater tank project?

Improper selection of mixer agitator will lead to incomplete stirring, frequent equipment stuck or excessive energy consumption. We sort out 5 targeted selection standards for engineering buyers to avoid matching errors:

(1) Confirm actual effective volume of the sewage tank first: select low-power small agitator for small dosing tanks, and match high-torque large model for large circulating sedimentation tanks;

(2) Measure the actual depth of the tank to customize accurate stirring shaft length, ensuring impeller is 300mm above tank bottom to avoid sludge collision;

(3) Judge water quality alkalinity: select SUS316L material for long-term strong alkaline sewage to extend service life;

(4) Check on-site power supply: confirm 50Hz or 60Hz power frequency to match corresponding motor parameters for Middle East overseas projects;

(5) Match overall system process: supporting spray column and large-scale water circulation system need to equip frequency conversion mixer agitator for intelligent speed adjustment.

Side-by-side Comparison: SINOU Mixer Agitator VS Common High-speed Stirrer

Compatible Supporting Equipment

Our SINOU mixer agitator can form a complete matched environmental protection solution with the following self-developed equipment:

(1) Spray Column: Provide uniform circulating water inlet for spray tower by balancing tank water quality, stabilize waste gas absorption efficiency

(2) HDPE Slurry Pipe: Anti-corrosion pipeline for conveying stirred sludge and circulating wastewater, matching agitator circulation flow

(3) Heavy Duty Mixer Truck Washing Machine: Process washing sewage flows into stirring tank, matched with mixer agitator for preliminary homogenization treatment

Diversified Industrial Application Scenarios

(1) Fixed and mobile concrete batching plant wastewater treatment tanks

(2) Chemical dosing mixing tanks for neutralizing agent adding and dilution

(3) Mining muddy sewage sedimentation tank anti-settling treatment

(4) Middle East desert mixing station sewage renovation projects adapting to high-sand alkaline water quality

(5) Construction site domestic sewage adjusting tank liquid homogenization stirring

(6) Building material factory circulating water tank constant water quality maintenance

Top Buyer Frequently Asked Questions

Q1: Will the mixer agitator be stuck by thick cement sludge at the tank bottom?

A: This SINOU mixer agitator is equipped with heavy-duty helical gear reducer with strong overload resistance. Meanwhile, the lowest impeller is kept away from tank bottom to avoid direct sludge collision.

Even facing thick accumulated sludge, the equipment will not be stuck or shut down suddenly, and can run normally after automatic overload buffering.

Q2: Can this mixer agitator adapt to 60Hz generator power supply commonly used in Saudi Arabia and UAE?

A: All motors of our mixer agitator support global dual frequency 50Hz/60Hz without extra frequency converter modification. The motor circuit is optimized for unstable generator voltage in desert areas, avoiding sudden startup failure caused by voltage fluctuation.

Q3: How long is the service life of the stirring shaft and impeller in high alkaline sewage?

A: Standard SUS304 material can work stably for 3 years in conventional alkaline sewage; upgraded SUS316L material can reach 5 years service life, suitable for long-term uninterrupted harsh working conditions.

Q4: Do I need to stop the agitator when discharging sludge regularly?

A: No need to shut down. The mixer agitator can keep running normally during sludge discharge, maintaining stable water circulation and avoiding secondary rapid sedimentation after sludge pumping.

Q5: Can we adjust the stirring speed according to real-time sludge concentration?

A: Yes, optional independent frequency conversion control cabinet can adjust rotating speed steplessly, realizing energy saving when sludge concentration is low and enhancing stirring power when sludge concentration is high.

Step-by-step On-site Installation Guidance

(1) Fix the integrated bracket on the reserved position of sewage tank top, keep the whole machine vertical without tilt;

(2) Connect motor and reducer assembly, lock all connecting bolts tightly to avoid vibration looseness;

(3) Install the stirring shaft and impeller, ensure the impeller is horizontal and no deflection;

(4) Connect power cable and ground wire strictly following electrical safety standards;

(5) Carry out no-load test run first to check operation vibration and noise;

(6) Put into full-load formal operation after confirming no abnormal running condition.

Scientific Tiered Maintenance Schedule & Wear Parts Replacement Cycle

(1) Daily Routine Inspection

① Check motor running noise and overall vibration amplitude

② Inspect shaft sealing position for sewage leakage

③ Observe whether impeller winding sundries affect stirring effect

(2) Weekly Maintenance

① Tighten all bracket and reducer connecting bolts

② Clean sundries wound on impeller blades

③ Check cable aging and waterproof sheath integrity

(3) Monthly Deep Maintenance

① Check reducer internal lubricating oil level and oil quality

② Detect stirring shaft verticality to correct slight deflection

③ Test overload protection and emergency stop function

(4) Quarterly & Annual Overhaul

① Quarterly: Replace aging mechanical sealing rings

② Annual: Overall inspection of stirring shaft corrosion degree, comprehensive debugging of motor parameters

(5) Standard Wearing Parts Replacement Cycle

① Mechanical sealing ring: 6-8 months

② Lubricating oil inside reducer: 12 months

③ Impeller blade: 24 months
