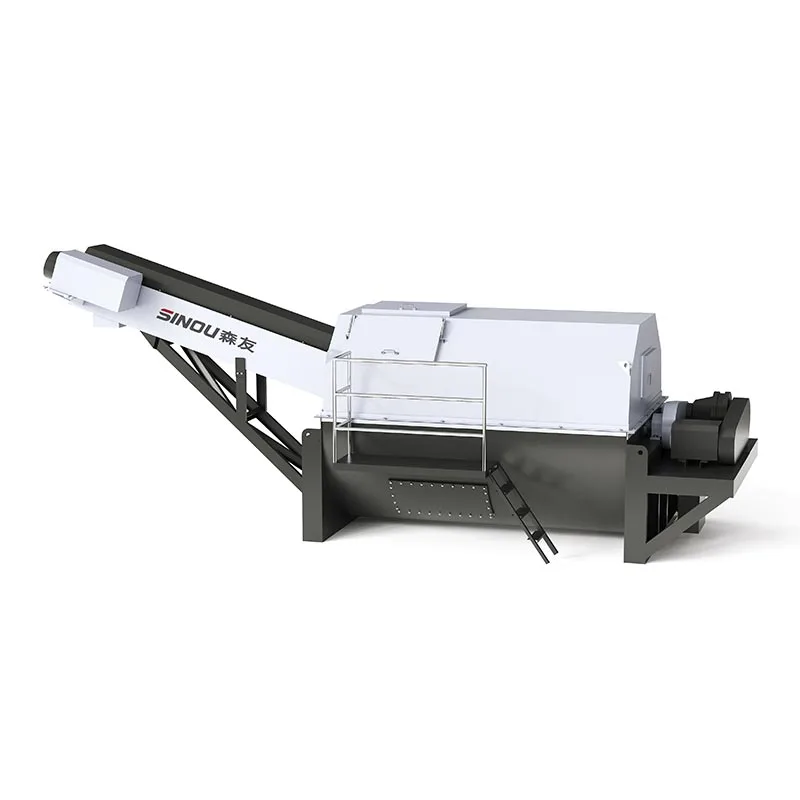

China Professional Rotary Concrete Reclaimer Supplier

SINOU Rotary Concrete Reclaimer is a top-selling rotary drum type sand-gravel separator widely purchased for concrete waste recycling projects. Paired with Vibratory Concrete Reclaimer, this equipment forms a complete concrete recovery solution to handle residual materials from mixer trucks for concrete batching plants.

It adopts mature rotary screening technology, featuring stable operation, flexible installation and cost-effective performance, which is a mainstream choice for medium-scale concrete production facilities worldwide.

1. What is Rotary Concrete Reclaimer?

Rotary Concrete Reclaimer, also known as rotary drum sand-gravel separator, is professional environmental protection equipment dedicated to recycling residual concrete from mixer trucks at concrete batching plants.

Different from Vibratory Concrete Reclaimer that applies vibration screening principles, it takes rotary screening drum and spiral conveying auger as the core working components.

It can automatically separate reusable coarse aggregate, fine sand and cleaning wastewater from waste concrete, building a fully closed-loop resource recycling system.

The compact overall structure supports forward and reverse installation, which adapts to various foundation layouts and limited installation space of on-site mixing stations, effectively reducing raw material waste and meeting international environmental protection discharge standards.

2. Working Principle

How does a standard Rotary Concrete Reclaimer work on site? This equipment operates based on mechanical rotary screening and spiral material conveying.

After residual concrete from mixer trucks flows into the feeding tank, the rotating drum firstly performs primary screening to intercept large-particle coarse aggregate.

The qualified fine sand is continuously lifted and slightly dewatered by the built-in spiral auger, and then delivered to the material storage area for direct reuse. Meanwhile, the separated wastewater is guided to supporting sedimentation tanks for cyclic use in concrete mixing and mixer truck cleaning.

The whole workflow runs continuously and autonomously without frequent manual intervention. When matched with supporting water pipelines and conveying equipment, the rotary concrete reclaimer can work with other auxiliary facilities to build a complete waste concrete treatment production line.

3. Core Features & Technical Advantages

SINOU Rotary Concrete Reclaimer is optimized according to the actual operation demands of concrete batching plants, with multiple practical advantages over traditional recovery equipment:

(1) Flexible layout & moderate footprint:

· This machine occupies reasonable floor space and supports dual installation directions, perfectly fitting narrow workshops and standard mixer truck parking bays.

(2) Anti-blocking screening structure:

· The upgraded rotary screen frame effectively prevents sieve hole clogging caused by concrete agglomeration, lowering shutdown cleaning frequency and improving continuous operation efficiency.

(3) Low moisture content for recycled sand:

· Fine sand processed by it has low residual water content, which can be directly used for concrete batching without secondary dewatering.

(4) Automatic control system:

· Equipped with integrated electric control cabinet, the reclaimer realizes unattended operation and greatly cuts labor costs.

(5) Cost-effective investment:

· Compared with high-throughput Vibratory Concrete Reclaimer, the rotary concrete reclaimer has lower procurement cost and operating cost, ideal for medium-load working conditions.

(6) Durable structure:

· The whole machine adopts integral welded structure and high wear-resistant accessories, extending the overall service life.

Product Details

1. Main Frame & Overall Structure

The main frame of the rotary concrete reclaimer is fabricated with thickened carbon steel via full welding process. The integral box-type structure features high structural rigidity, strong anti-vibration capability and excellent load-bearing performance, which will not deform or shake during continuous high-load operation. All welding seams are polished and anti-rust treated to adapt to humid and muddy working environments on construction sites.

The whole machine is designed with a compact layout and takes up moderate floor space. It supports forward and reverse two installation modes, so users can flexibly adjust the placement direction of the equipment according to the layout of mixer truck parking areas and plant foundation conditions. Standard safety protective guards are equipped around rotating parts to fully comply with EU mechanical safety standards and avoid operational risks.

2. Rotary Screening Drum Assembly

As the core screening component, the rotary drum adopts reinforced roller design and high-strength wear-resistant screen mesh. The screen holes are scientifically sized to efficiently separate coarse aggregate above 5mm from mixed concrete. The rotating operation mode can automatically shake off adhered concrete residues, effectively solving the common screen blockage problem of traditional separating equipment.

The two ends of the drum are equipped with sealed bearing seats with good dustproof and waterproof effects, which can prevent mortar and sewage from entering and causing component damage. The drum drive unit uses a low-speed high-torque gear motor, enabling the rotary concrete reclaimer to maintain steady rotating speed and stable screening efficiency even when dealing with large lumps of residual concrete.

3. Spiral Conveying & Dewatering Auger

The matched spiral auger is responsible for lifting and dewatering fine sand, which is another key part. The auger shaft is made of solid thickened steel, and the spiral blades are welded with high-hardness wear-resistant steel plates. This design greatly enhances the abrasion resistance of the auger and avoids blade wear, deformation or fracture caused by long-term friction with sand and gravel.

While conveying fine sand upward, the spiral structure can realize natural dewatering. The recycled fine sand processed by the rotary concrete reclaimer has low moisture content and can be directly put into concrete batching without secondary dewatering treatment. The auger drive system runs synchronously with the rotary drum to ensure coordinated operation of the whole equipment.

4. Feeding & Water Circulation Structure

The feeding tank has a large caliber and anti-spattering design, which can smoothly receive residual concrete discharged from mixer trucks and prevent material splashing during feeding. The inner wall of the feeding tank is pasted with wear-resistant lining plates to reduce the impact and abrasion of concrete on the tank body.

The equipment reserves standard interfaces for water pipelines. It can be seamlessly connected with on-site sedimentation tanks and HDPE drainage pipes to collect separated wastewater completely. The recycled water can flow back to the production link for reuse, realizing water resource recycling and zero discharge of sewage. The internal flow channel is optimized to keep the drainage unobstructed and prevent sludge deposition.

5. Electrical Control System

The product is equipped with a fully automatic integrated electric control cabinet, which adopts well-known brand electrical components that meet international electrical standards. The control panel is simple and intuitive, supporting one-click start and stop, automatic operation and emergency stop functions. Operators can master the operation methods quickly without professional training.

The system has built-in overload protection, leakage protection and fault alarm functions. When the equipment is blocked, overloaded or abnormally operated, it will automatically cut off the power and send an alarm signal to protect the motor and core components from damage. The fully automatic operation mode realizes unattended work, effectively reducing manual labor input.

6. Wear-resistant & Auxiliary Components

In view of the harsh working conditions of concrete recycling, all vulnerable parts are made of high-quality wear-resistant materials. In addition to screen mesh and spiral blades, the connecting brackets, support legs and guide chutes are all reinforced and anti-wear treated.

We provide complete supporting accessories and spare parts, including bearings, sealing parts, drive motors, screen plates and auger blades. All spare parts are in sufficient stock and can be delivered quickly worldwide, which facilitates daily replacement and maintenance and minimizes the downtime of the production line.

7. Manufacturing Standards & Certification

All SINOU rotary concrete reclaimers are manufactured in strict accordance with 2006/42/EC Machinery Directive, and pass the inspection of EN ISO 12100:2010 and EN 60204-1:2018 safety standards. The products have obtained official UDEM Machinery Directive Conformity Certificate with long-term valid qualification.

From raw material incoming inspection to finished product delivery, every production link is subject to strict quality testing. The reliable quality supports overseas project bidding, market access and long-term stable operation, and is fully trustworthy for global concrete batching plant owners.

Click to Download Our Equipment Test Report

8. Overall Operation & Maintenance Details

The equipment features simple structural design and low maintenance difficulty. After each shift, users only need to clean the residual concrete on the rotary drum, feeding tank and spiral auger. It is required to regularly inject lubricating oil into transmission bearings and check the tightness of connecting bolts every week.

With reasonable structural design and high-quality matching parts, the failure rate is kept at a low level. Compared with the high-throughput Vibratory Concrete Reclaimer, it has lower daily operation and maintenance costs, making it a cost-effective choice for medium-scale concrete production projects.

Application Scope & Matching Equipment

1. Main Application Scope

(1) Core Application Scenarios

This rotary concrete reclaimer is primarily tailored for medium-sized ready-mix concrete batching plants, which produce stable volumes of leftover concrete and mixer truck washing sewage every day. Its compact layout and flexible installation modes perfectly fit standard truck parking areas and limited on-site foundation space.

It is also widely deployed at temporary mixing stations for municipal road projects, bridge construction and rural infrastructure works. For these short-term construction sites, it features low investment, easy relocation and simple commissioning, fully meeting temporary waste treatment demands.

In addition, it works well for small precast component factories. It efficiently recycles waste concrete generated during prefabrication, turning discarded materials into reusable aggregates and cutting raw material procurement costs while complying with local waste discharge regulations.

(2) Adaptable Working Conditions

The rotary concrete reclaimer boasts excellent adaptability to complex working environments. It can handle wet residual concrete, semi-dry concrete blocks and cement-laden sewage commonly seen in concrete production. The rotary screening structure resists material caking and screen clogging, maintaining high separation efficiency even in humid and muddy field conditions.

Designed for continuous heavy-duty operation, it can run stably for long hours under medium load. It is not recommended for ultra-large mixing plants with extremely high daily waste concrete output; for such cases, we suggest choosing Vibratory Concrete Reclaimer with higher hourly throughput.

2. Standard Matching Equipment & Auxiliary Systems

To form a complete closed-loop concrete recycling workflow, the rotary concrete reclaimer needs to be matched with a set of dedicated auxiliary equipment and pipeline systems. All supporting facilities are highly compatible with our product, enabling seamless connection and coordinated operation.

(1) On-Site Civil Facilities

● Sedimentation Tanks & Wastewater Ponds: The separated sewage flows into multi-stage sedimentation tanks. After natural precipitation, the clear water is recycled for mixer truck flushing and concrete batching, realizing zero sewage discharge.

● Material Collection Bins: Independent storage areas are equipped for recycled coarse aggregate and fine sand to avoid material mixing and facilitate direct reuse in subsequent production.

(2) Conveying & Pipeline Accessories

● Conveying Equipment: Simple belt conveyors or chutes can be connected to the aggregate outlet to transport recycled sand and gravel to designated stockpiles.

● HDPE Pipe Systems: Standard water inlet and outlet interfaces match HDPE water supply and drainage pipes. These pipes feature corrosion resistance, smooth inner walls and low flow resistance, ensuring unobstructed long-term water delivery for the recycling system.

(3) Electrical & Control Supporting Parts

● Distribution Cabinet & Cable Sets: Matched low-voltage distribution components support the power supply and its auxiliary motors, with complete leakage and overload protection functions.

● Interlocking Control Components: For production lines linked with multiple devices, interlocking modules can be added to realize synchronous start and stop and upstream/downstream equipment, improving overall operational safety.

(4) Optional Wear Parts & Expansion Accessories

We provide a full range of original spare parts for user selection, including wear-resistant screen meshes, auger blades, sealed bearings and drive motors. These standardized parts are in sufficient stock for fast global delivery, greatly shortening equipment downtime.

For sites requiring dust suppression and noise reduction, users can additionally equip the rotary concrete reclaimer with fully enclosed protective covers and noise reduction components to further optimize the on-site working environment.

3. System Combination Solutions

(1) Independent Single-Machine Solution

For small and medium-sized mixing stations with ordinary treatment demands, the rotary concrete reclaimer can operate independently with basic sedimentation tanks and water pipes. This solution features simple layout, low overall cost and easy management, which is the most widely adopted configuration.

(2) Combined Multi-Machine Solution

For production bases composed of multiple mixing stations, multiple sets can be deployed in groups. Meanwhile, collocate a small number of Vibratory Concrete Reclaimer to handle peak-period high-volume waste materials. This combined mode balances cost and processing capacity to maximize overall operational efficiency.

4. Selection Tips Based on Application

● Choose the rotary concrete reclaimer if your plant has medium daily waste output, limited installation space and a limited budget.

● If you pursue higher separation cleanliness and larger single-hour processing capacity, prioritize the Vibratory Concrete Reclaimer.

● No matter which model you select, please reserve enough space for sedimentation tanks and pipeline layout during site planning to guarantee the normal operation of the entire recycling system.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between Rotary Concrete Reclaimer and Vibratory Concrete Reclaimer?

A: Rotary Concrete Reclaimer uses rotary drum screening technology, featuring stable operation, low investment and flexible layout, mainly for medium-volume residual concrete treatment.

Vibratory Concrete Reclaimer adopts linear vibration screening, with larger hourly processing capacity and cleaner separation effect, which is more applicable to large concrete batching plants.

You can choose the right model according to daily waste concrete volume, site space and budget.

Q2: Will the screen drum be blocked during long-time operation?

A: Our equipment is designed with optimized rotary screening structure. The rotating state can automatically shake off adhered concrete residues, effectively reducing screen blockage. Simple daily cleaning can keep the rotary concrete reclaimer running efficiently all the time.

Q3: Can aggregate and wastewater separated by Rotary Concrete Reclaimer be reused directly?

A: Yes. Coarse aggregate and fine sand separated by the rotary concrete reclaimer fully meet the production standards of concrete batching. The separated wastewater flows into sedimentation tanks, and the clarified water can be recycled for mixer truck cleaning and concrete mixing after simple precipitation, realizing zero discharge of production wastewater.

Q4: Does Rotary Concrete Reclaimer support customized installation?

A: It supports forward and reverse installation. Our professional technical team can provide targeted layout suggestions and minor structural adjustments based on the actual foundation size of the site to ensure the normal matching and operation of the rotary concrete reclaimer and the whole production line.

Q5: What supporting accessories need to be equipped?

A: The standard set is equipped with screen drum, spiral auger, control cabinet and connecting brackets. It can be matched with sedimentation tanks, water pipes and conveying equipment on site. We also provide complete wear-resistant spare parts for the rotary concrete reclaimer for customers to purchase separately.

Operation, Maintenance & After-sales Service

Regular daily maintenance is essential to prolong the service life. After each working shift, operators need to clean residual concrete on the rotary drum and spiral auger to avoid material solidification. It is required to check the lubrication of transmission bearings and the tightness of connecting parts every week, and replace worn screen panels and auger blades in a timely manner.

All SINOU Rotary Concrete Reclaimer products enjoy 12-month global warranty service. We provide remote video installation guidance and lifelong professional technical support. A full range of wear parts are in stock for fast global delivery to minimize equipment downtime.

In addition, it has passed strict compliance assessment and obtained official UDEM Machinery Directive Conformity Certificate, complying with 2006/42/EC Machinery Directive, EN ISO 12100:2010 and EN 60204-1:2018 standards. Complete qualification documents support overseas project bidding and international market access.

Product Strength & Market Reputation

SINOU is a professional manufacturer dedicated to the R&D, production and sales of Rotary Concrete Reclaimer and supporting concrete recycling equipment. Rooted in the environmental protection machinery industry for years, we integrate independent R&D, precision manufacturing and full-cycle after-sales service, delivering reliable solutions for concrete batching plants worldwide.

Our product portfolio also includes Vibratory Concrete Reclaimer, forming a complete product matrix to cover diversified waste concrete treatment demands of different clients.

1. Core Product Strength

(1) R&D & Manufacturing Strength

We have an experienced engineering team focusing on structural optimization and performance upgrading of rotary concrete reclaimer. Combining years of on-site operation data and industry pain points, we continuously iterate the anti-blocking screen structure, wear-resistant conveying system and automatic control logic.

All products are manufactured in strict accordance with 2006/42/EC Machinery Directive, EN ISO 12100:2010 and EN 60204-1:2018 international safety standards. Every concrete reclaimer undergoes multiple strict tests including no-load operation, load operation and aging detection before delivery, so as to ensure stable performance under long-term heavy-duty working conditions. The whole production process adopts standardized flow management, which effectively controls product quality and reduces overall failure rate.

(2) Structural & Performance Advantages

Different from ordinary separating equipment, our rotary concrete reclaimer adopts thickened fully welded frame and reinforced core components. The rotary screening drum and spiral auger are made of high-wear-resistant materials, which greatly extend the service life of vulnerable parts. Its flexible dual-direction installation design adapts to various site layouts, a prominent advantage for mixing stations with limited space.

Equipped with an intelligent automatic control system, the equipment realizes unattended continuous operation, effectively cutting labor costs for end users. Meanwhile, the optimized material conveying and drainage structure improves aggregate separation accuracy and wastewater recycling efficiency, helping enterprises reduce raw material loss and meet increasingly stringent environmental protection regulations.

(3) Cost-effectiveness & Service Support

Compared with high-throughput Vibratory Concrete Reclaimer, the rotary type features reasonable procurement cost and low daily operation and maintenance expenses, achieving excellent cost performance for medium-load working scenarios. We provide a full set of standardized spare parts with sufficient inventory, which can be delivered globally in a short time to minimize production downtime.

In terms of after-sales service, we offer 12-month global warranty, remote video installation guidance and lifelong technical support. Our professional service team can respond quickly to solve on-site operation and maintenance problems, creating a worry-free using experience for every user.

(4) Certification & Compliance Advantages

All our reclaimers have obtained the official UDEM Machinery Directive Conformity Certificate, with the certificate valid until December 25, 2030. Complete qualification documents support product access, project bidding and customs clearance in European, Middle Eastern, Southeast Asian and other overseas markets.

All equipment fully complies with local mechanical safety and environmental protection norms, so clients do not need to worry about compliance risks.

2. Global Market Layout & Brand Reputation

(1) Market Coverage

Relying on reliable product quality, competitive pricing and comprehensive service system, our rotary concrete reclaimer has been widely sold to Europe, the Middle East, Southeast Asia and many other regions and countries. We have established stable cooperative relations with numerous commercial concrete batching plants, construction engineering contractors and precast component manufacturers.

Our dual product line composed of rotary concrete reclaimer and Vibratory Concrete Reclaimer can match small, medium and large mixing stations simultaneously, covering mainstream application scenarios of the global concrete recycling industry. Many overseas clients choose to purchase our products in batches and build long-term strategic partnerships.

(2) User Word-of-mouth

In the global market, our product is highly recognized by users for stable operation, convenient maintenance and prominent resource recovery benefits. Many feedbacks show that the equipment runs continuously for years with few failures, and the recycled sand, stone and wastewater can be fully reused, bringing tangible economic and environmental benefits to enterprises.

We always adhere to the business philosophy of "Quality First, Customer-oriented". Whether it is standard products or customized solutions, we take the actual demands of clients as the starting point. Good product performance and thoughtful service have helped us accumulate a high reputation in the international concrete machinery industry, and the brand influence continues to expand.

(3) Industry Position & Future Development

Focusing on the field of concrete waste recycling, we keep tracking the latest industry trends and environmental protection policies, and continuously upgrade the performance. At present, our products have become the preferred choice for many medium-sized concrete mixing stations to carry out waste resource recovery and environmental transformation.

In the future, we will further optimize product technology, expand overseas sales channels, and provide more efficient, energy-saving and environmentally friendly concrete recycling equipment for global users, striving to become a benchmark brand in the field of sand-gravel separation machinery.
