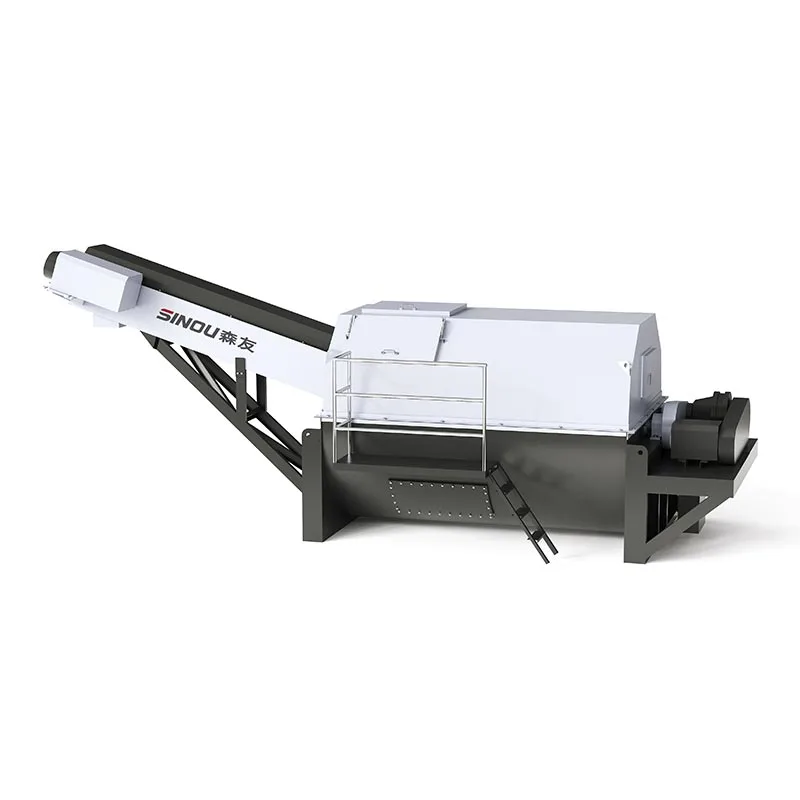

Rotary Concrete Reclaimer for Concrete Batching Plants

Sinou, a trusted China factory, provides Rotary Concrete Reclaimer for Concrete Batching Plants. This equipment recycles residual concrete to recover reusable aggregates, helping plants meet both production demands and environmental regulations.

1. Product Advantages and Features

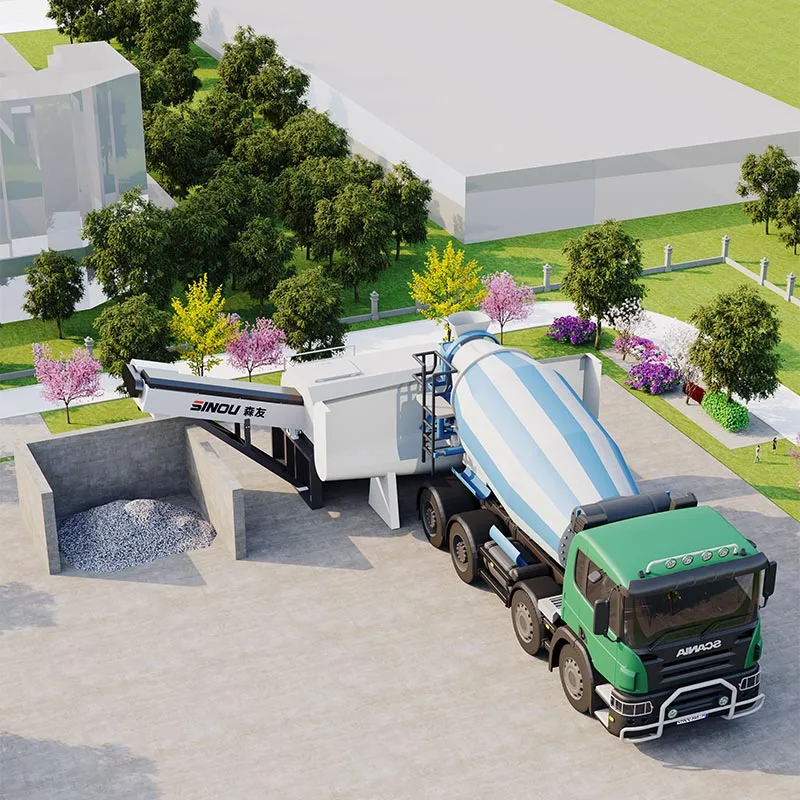

● Mixing Station Customization: Every aspect of the machine is designed with concrete batching plants in mind. The feeding hopper height and width perfectly match standard mixer truck discharge chutes, eliminating the need for on-site modifications. The drum speed and washing pressure are calibrated to handle both normal and high-slump concrete mixes, ensuring optimal performance.

● High Adaptability: The Rotary Concrete Reclaimer for Concrete Batching Plants is engineered to handle the harsh conditions of mixing stations. It can process concrete with varying humidity, viscosity and slump levels without blockage. The reinforced frame and anti-blocking structure ensure stable operation even during peak production hours.

● High Efficiency and Recovery: The optimized rotary screening and washing process ensures thorough cleaning of aggregates, resulting in an aggregate recovery rate of over 95% and a water recycling rate of over 90%. This significantly reduces waste and helps lower raw material and water costs.

● Low Failure Rate and Easy Maintenance: The machine features a robust design with wear-resistant components and minimal moving parts, reducing the risk of failure. Universal wearing parts are used, making replacement and maintenance simple and cost-effective. The PLC control system provides early warning for potential issues, preventing unexpected downtime.

2. Common Problems and Solutions

● Material Blockage: This is usually caused by excessive concrete viscosity or insufficient water pressure. To resolve it, increase the water pressure and reduce the feeding speed. Regularly clean the water nozzles and screen to prevent clogging, especially when processing sticky concrete.

● Low Aggregate Cleanliness: If the recovered aggregates are not clean enough, it may be due to insufficient washing time or blocked nozzles. Extend the washing cycle and inspect the nozzles for blockages. Clean or replace any blocked nozzles to restore full washing efficiency.

● Abnormal Vibration: This is often caused by uneven installation or loose foundation bolts. Adjust the machine's level and tighten all bolts securely. If the problem persists, check and replace worn bearings, which can also cause vibration.

● Slurry Overflow: Slurry overflow is generally caused by a blocked pipeline or insufficient pump power. Inspect and clean the slurry pipeline to remove any blockages. Check the pump's performance and repair or replace it if necessary to ensure proper circulation.

3. Product vs. Competitors Comparison

● Customization for Mixing Stations: Unlike generic competitors that require on-site modifications, Sinou's Rotary Concrete Reclaimer for Concrete Batching Plants is fully customized to the layout and requirements of concrete batching plants. This saves time and cost during installation and ensures seamless integration with existing systems.

● Aggregate Recovery Rate: Sinou's machine achieves an aggregate recovery rate of over 95%, which is higher than the average 90% of competing models. This higher recovery rate translates to significant cost savings on raw materials over time.

● Anti-Blocking Performance: The reinforced anti-blocking structure of Sinou's machine makes it far less prone to blockage when processing sticky or high-slump concrete, a common issue with generic models. This results in less downtime and higher operational efficiency.

● Maintenance Cost: Sinou uses universal, easily replaceable wearing parts, which are cheaper and more readily available than the non-standard parts used by some competitors. This significantly reduces long-term maintenance costs.

After-Sales Service

Sinou provides on-site installation, commissioning, operator training, 24-hour technical support, a one-year warranty and lifelong maintenance. We also offer customized maintenance plans based on station conditions.
