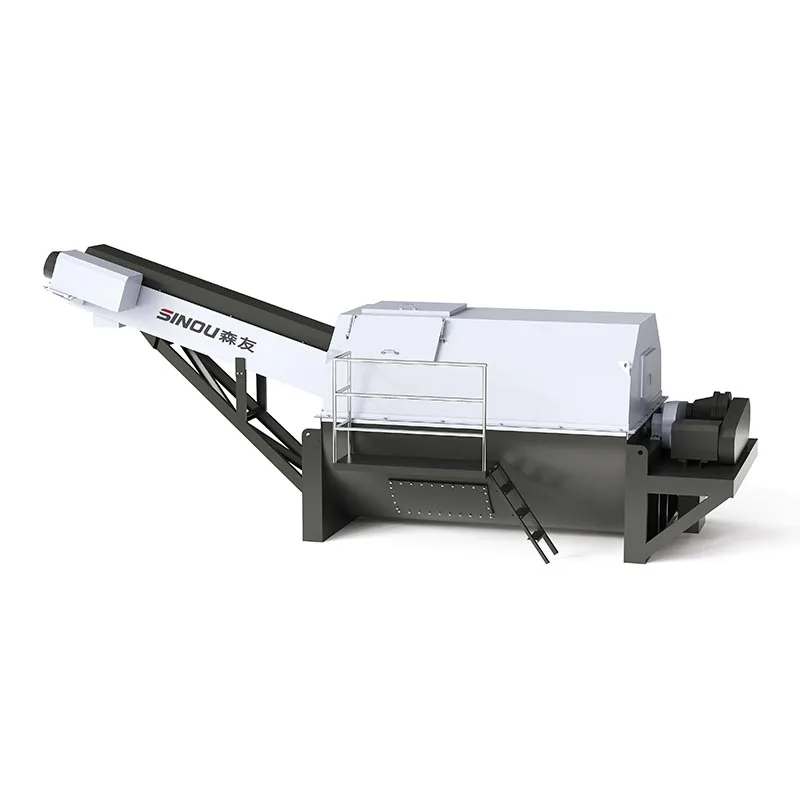

Rotary Concrete Reclaimer for Aggregate Recycling

Sinou, a reliable factory in China, is the supplier of Rotary Concrete Reclaimer for Aggregate Recycling. The rotary drum design ensures thorough washing, producing clean aggregates that meet construction standards for reuse in new concrete mixes.

1. Product Details

● Multi-Stage Washing System: The machine is equipped with a multi-stage high-pressure water washing system with adjustable pressure. The nozzles are arranged in a staggered pattern to ensure full coverage and thorough cleaning, effectively removing cement paste and impurities from the aggregate surface.

● Wear-Resistant Screen Structure: The screen is made of high-quality polyurethane material, which is highly wear-resistant and has a long service life. The uniform aperture ensures accurate grading of aggregates, producing consistent particle sizes for reuse.

● High-Chromium Alloy Liners: The inner wall of the rotary drum is lined with high-chromium alloy liners. These liners have excellent wear resistance, significantly extending the service life of the drum under continuous operation with abrasive materials.

● Integrated Slurry Treatment System: Our Rotary Concrete Reclaimer for Aggregate Recycling features an integrated slurry collection and sedimentation system. The collected slurry is treated in a closed loop, allowing water to be recycled and reused. This eliminates the need for an external sedimentation tank and ensures zero sewage discharge.

2. Product vs. Competitors Comparison

● Recycled Aggregate Purity: Sinou's machine achieves a recycled aggregate purity of over 98%, which is significantly higher than the average 95% of competing models. This higher purity ensures the aggregates meet strict reuse standards for various applications.

● Multi-Stage Washing Technology: Unlike most competitors that use only one-stage basic washing, Sinou's machine uses a three-stage cleaning process. This results in much cleaner aggregates with minimal residual cement paste.

● Screen Material and Durability: The polyurethane screen used in Sinou's machine is far more wear-resistant than the ordinary steel screens used by many competitors. This translates to a longer service life and lower maintenance costs.

● Slurry Treatment System: Sinou's integrated closed-loop slurry treatment system eliminates the need for an external sedimentation tank, which is required by many competing models. This saves space and simplifies the overall process.

3. FAQ

Q: What is the purity of the recycled aggregates?

A: Over 98%, meeting most engineering reuse standards.

Q: Can it be used for road base construction?

A: Yes, the high-purity aggregates are suitable for road base and backfill.

4. Product Testing Items and Data

● Separation Efficiency Test: Under full load operation, the separation efficiency of the machine was tested at 96.5%, indicating high efficiency in separating aggregates from the slurry.

● Water Consumption Test: Compared to traditional concrete washing methods, Rotary Concrete Reclaimer for Aggregate Recycling reduces water consumption by 40%, thanks to its efficient closed-loop recycling system.

● Wear Resistance Test: After 1000 hours of continuous operation, the wear-resistant liners showed no significant signs of wear, demonstrating their durability under heavy use.
