Customized Sand and Gravel Washer Factory

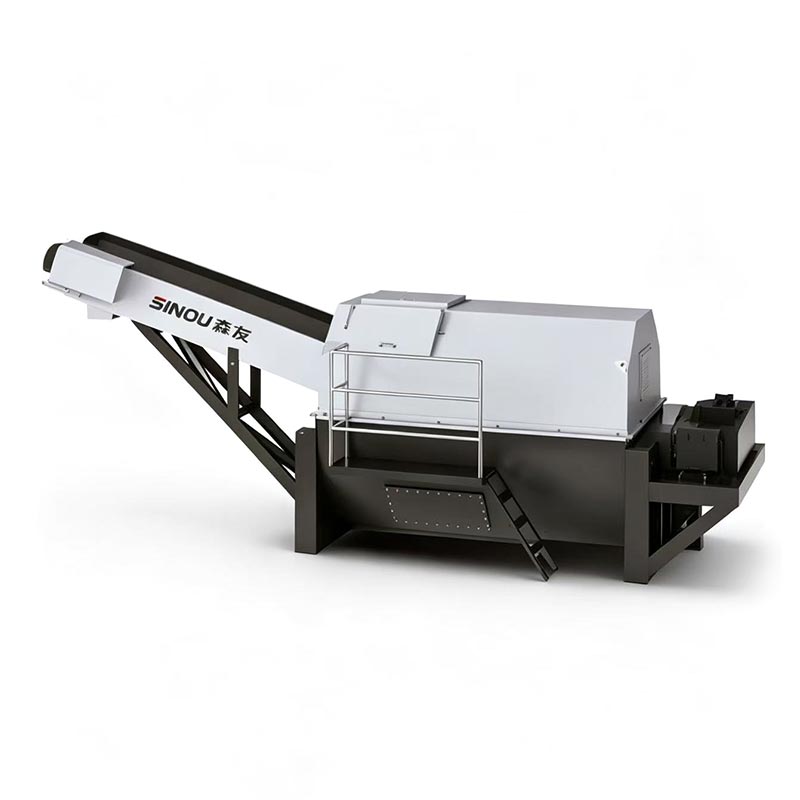

SINOU Sand and Gravel Washer is a professional wet-type cleaning equipment specially developed for aggregate purification, widely used together with Rotary Concrete Reclaimer and Vibratory Concrete Reclaimer in concrete recycling lines. It is mainly applied to remove mud, dust, organic impurities and residual cement on the surface of recycled sand and stone.

By means of high-pressure water flushing and mechanical stirring, it greatly improves aggregate cleanliness and grading quality. The treated sand and gravel can fully meet the raw material standards of commercial concrete, turning waste residual concrete into high-quality reusable resources.

This equipment is an essential supporting unit to upgrade the overall utilization value of concrete recycling systems.

Working Principle & Structural Advantages

This sand and gravel washer adopts combined mechanical agitation and circulating water flushing technology to realize continuous cleaning operation.

(1) Working Principle

Recycled aggregate from the concrete reclaimer is fed into the washing tank. The built-in stirring impeller continuously rolls and turns over materials to separate mud and dirt attached to sand and gravel. Meanwhile, the circulating water system sprays high-pressure water flow for thorough rinsing. Light impurities and muddy water flow out with the water and enter the sedimentation system for recovery and reuse, while clean sand and gravel are discharged from the designated outlet to complete the whole washing process. The whole procedure runs continuously and circularly.

(2) Core Structural Highlights

● Reinforced stirring impeller: Made of high wear-resistant alloy steel, it resists long-term friction and impact from aggregates, with strong stirring capacity and no easy deformation.

● Large-capacity water tank: Optimized water flow channel design ensures full contact between materials and water, and avoids material deposition.

● Integrated circulating water system: Realizes water recycling, reduces water consumption and complies with environmental protection regulations.

(3) Matching Performance

It can be seamlessly connected with upstream sand-gravel separation equipment and downstream aggregate conveying systems. Matched with supporting chutes and HDPE pipelines, it forms a complete set of aggregate recycling, cleaning and conveying production lines, with stable overall operation and low failure rate.

Product Features & Performance Highlights

1. Excellent cleaning effect: Dual action of mechanical stirring and high-pressure water flushing effectively remove surface mud and cement residues, and the cleanliness of finished aggregates reaches industrial standards.

2. Super wear resistance: Key moving parts adopt wear-resistant strengthening process, adapting to long-term continuous operation in harsh working conditions.

3. Water-saving & eco-friendly design: Equipped with complete water circulation and sedimentation facilities, the water recycling rate is high, effectively reducing water resource waste and sewage discharge.

4. Wide adaptability: Suitable for cleaning recycled aggregate of different particle sizes, and can work normally for dry, wet and mixed materials.

5. Simple operation & low maintenance: Equipped with automatic control system, it supports unattended operation; the open structure is convenient for daily inspection and residue cleaning.

6. Compact layout: Reasonable structural design saves installation space, easy to integrate into existing concrete recycling production lines.

Wide Application Scenarios & Industry Matching

SINOU Sand and Gravel Washer is widely used in concrete batching plants, construction waste recycling stations, aggregate processing yards and other fields, serving the solid waste resource recovery industry.

1. Industry Adaptation

● Concrete recycling projects: Matched with Rotary Concrete Reclaimer / Vibratory Concrete Reclaimer to purify recycled sand and gravel and improve concrete finished quality.

● Construction waste treatment: Clean crushed building aggregate to realize resource reuse.

● Aggregate processing plants: Secondary cleaning of raw sand and stone to improve product grade.

2. Frequently Asked Questions

Q: Can this sand and gravel washer work with concrete reclaimers?

A: Absolutely. It is specially designed as supporting equipment for concrete recycling systems. It can be directly connected to the discharge port of rotary and vibratory concrete reclaimers to realize one-stop separation and cleaning of residual concrete, which is the standard configuration for high-standard recycling lines.

Q: What is the mud removal capacity of the equipment?

A: The combined stirring and flushing structure can thoroughly strip surface mud and cement clumps. The mud content of cleaned aggregate can be controlled within the standard range, fully meeting the production requirements of ready-mixed concrete.

Q: Does the equipment consume a lot of water during operation?

A: No. The machine is equipped with an independent circulating water system. After muddy water is precipitated, the clear water is reused for flushing. The actual fresh water consumption is very low, which is energy-saving and environmentally friendly.

Q: Is the equipment suitable for large-volume continuous production? A: Yes. The whole machine is designed for heavy-duty continuous operation. The large tank body and high-power drive system can adapt to long-hour, large-flow aggregate cleaning work for large mixing stations.

Q: Can the equipment be customized according to on-site conditions?

A: We provide personalized customization including tank volume, processing capacity, installation size and power configuration to meet the layout demands of different production lines.

3. Production Line Matching Solutions

● Combined with sand-gravel separators, sedimentation tanks and belt conveyors to build a full closed-loop concrete waste recycling line.

● Used independently for raw aggregate cleaning in sand and stone yards.

Complete Selection Guide & Custom Service

1. Step-by-step Selection Guide

● Confirm the hourly output of recycled aggregate to select the corresponding model with matching processing capacity.

● Judge the material mud content and particle size to determine the configuration of water spray system and stirring structure.

● Combine the layout of the existing production line to select horizontal or integrated structure and confirm installation dimensions.

● Select standard or enhanced wear-resistant configuration according to long-term operating intensity.

2. Customization Service

Support customization of processing capacity, equipment size, power parameters and wear-resistant parts configuration.

3. Certification & Supporting

Procurement: All products comply with international machinery safety standards and can provide complete certification documents for overseas bidding and market access. We support one-stop procurement together with concrete reclaimers, chutes, HDPE pipes and other supporting accessories.

Comparison with Similar Products & Cost Performance

1. Core Advantages Over Ordinary Cleaning Equipment

● Higher cleaning efficiency: Mechanical stirring + high-pressure flushing dual mode, better cleaning effect than single water flushing equipment.

● Lower operating cost: The circulating water system greatly reduces water cost, and wear-resistant parts extend service life and cut replacement frequency.

● Stronger matching: Professional design for concrete recycling lines, better docking performance than general sand washers.

● More stable operation: Optimized transmission structure, low vibration and low failure rate during long-term operation.

2. Product Type Classification

● Standard Sand and Gravel Washer: Conventional processing capacity, cost-effective, suitable for medium-sized concrete batching plants and ordinary recycling lines.

● Large-Capacity Sand and Gravel Washer: Enlarged tank body and enhanced drive system, for large mixing stations and centralized construction waste treatment bases with high aggregate output.

● Compact Integrated Washer: Small footprint, integrated structure, suitable for production lines with limited installation space.

Overall Advantages & Market Reputation

Equipped with automatic circulating water flushing and mechanical stirring system, the sand and gravel washer realizes efficient automatic cleaning and reduces manual labor. It features excellent universal compatibility, which can be flexibly matched with various models of Rotary Concrete Reclaimer, Vibratory Concrete Reclaimer and other recycling equipment.

Relying on reliable quality, reasonable price and stable performance, our products have been exported to Europe, Southeast Asia, the Middle East and other regions, winning long-term trust and cooperative relationships from numerous engineering and concrete enterprises.

Routine Maintenance

1. Regularly inject lubricating oil into all bearing positions and transmission components, and check whether the transmission runs flexibly and stably.

2. Inspect all fastening screws and bolts regularly, and tighten loose parts in a timely manner to prevent vibration and displacement.

3. Clean residual sand, gravel and cement dirt inside the tank and on the stirring impeller after each shift to avoid material solidification and blockage.

4. Clear sludge and sediment in the circulating water tank and peripheral water channels every day to ensure unobstructed water circulation.
