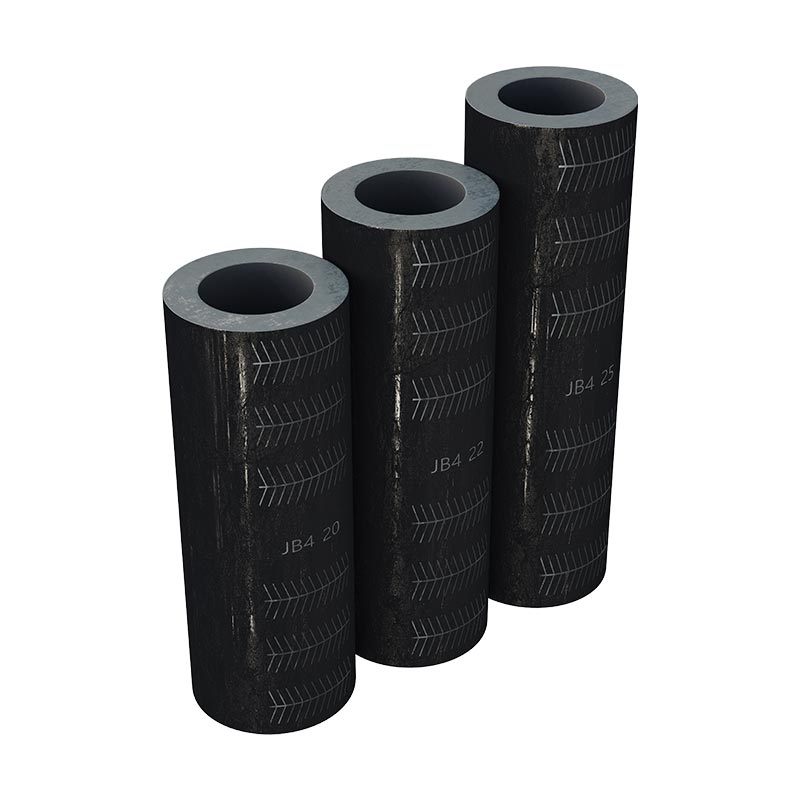

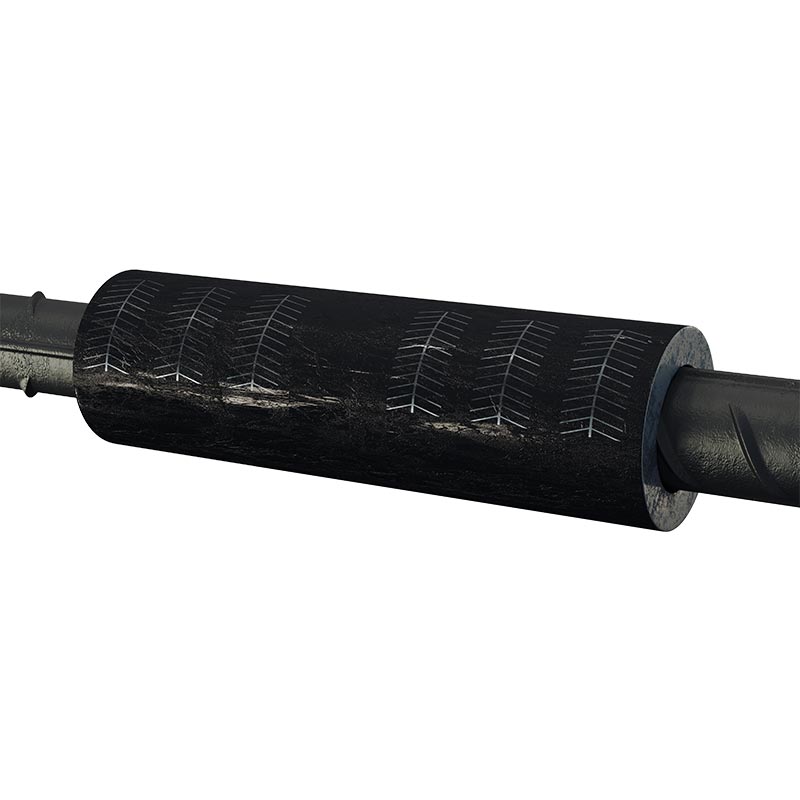

Strength Carbon Steel Squeezing Reinforcing Bar Socket For Wastewater Complete Equipment Connection Parts

SINOU is a specialized factory producing heavy-duty compression connecting fittings for environmental wastewater equipment, provides customized Strength Carbon Steel Squeezing Reinforcing Bar Socket For Wastewater Complete Equipment Connection Parts for worldwide wastewater engineering contractors and equipment manufacturers.

Different from ordinary threaded bushings, it adopts cold extrusion forming process and squeeze locking installation mode without thread structure, high tensile and anti-vibration performance to adapt continuous vibration of sludge conveying equipment.

Multiple specification customization available, with hot galvanized anti-corrosion finish to resist neutral & weak corrosive sewage splash, widely used for shaft connection, base fastening and pipeline fitting fixing of full-set wastewater dewatering equipment to stabilize whole system running.

Core Product Advantages

1.High-strength seamless 45# carbon steel raw material

The Strength Carbon Steel Squeezing Reinforcing Bar Socket For Wastewater Complete Equipment Connection Parts selects high-quality national standard 45# seamless solid carbon steel bar as raw blank, processed by integral hot forging and precision CNC machining after high-temperature forging forming.

Compared with ordinary cast iron and recycled low-carbon iron accessories on the market, it features dense internal metal structure without pores and sand holes, with outstanding tensile resistance and compressive bearing capacity.

It can bear frequent alternating load generated by long-term hydraulic reciprocating squeezing of filter press and continuous high-frequency vibration of sludge feeding pump, effectively avoid cracking, deformation and fracture under long-time fatigue working environment of sewage workshops, greatly prolong the overall service life of connecting components.

2.Non-thread integrated squeeze locking structural design

Abandon the conventional internal and external thread assembly mode of common connecting sockets completely. The socket adopts special cold extrusion deformation principle, after hydraulic tool forced squeezing, the sleeve body produces uniform plastic deformation and closely wraps the outer circle of matching connecting shaft or positioning pin to realize zero-clearance interference fit locking.

There is no thread meshing gap, fundamentally eliminate hidden troubles such as thread rust corrosion, tooth stripping and loose falling off easily caused by humid sewage splash, salt ion erosion and frequent start-stop vibration of wastewater equipment, solve the common industry failure pain point of threaded fittings in sewage treatment stations.

3.Full-piece hot-dip galvanizing composite anti-rust treatment technology

All finished sockets adopt integral hot-dip galvanizing process plus surface closed anti-rust sealing paint double-layer protection craft, the average thickness of surface zinc coating is controlled above 80μm, no missing plating, bare metal and coating bubbling defects on inner hole and outer wall. All finished products pass more than 72 hours continuous neutral salt spray aging inspection before leaving factory, the complete anti-corrosion isolation layer can effectively block the erosion of high-humidity sewage splash, trace chloride and organic salt substances in municipal and weakly corrosive industrial sewage environment, slow down surface oxidation rust and extend spare parts replacement cycle.

4.Quick hydraulic squeezing installation, save on-site construction cost

Support matched portable small-sized dedicated hydraulic squeezing tool for field installation operation. The whole installation process only needs fixed clamping and one-time pressurized squeezing forming, no procedures such as on-site welding, tapping, bolt tightening and thread trimming are needed. The operation steps are simplified greatly, shorten the maintenance shutdown time of filter press, sludge pump and supporting pipeline equipment during old equipment renovation, reduce labor hours and construction cost of field maintenance for wastewater treatment enterprises.

5.Multi-spec flexible customization to adapt various old equipment renovation demands

A full range of conventional inner hole aperture, outer diameter and length specifications are in regular stock for quick delivery. Meanwhile, we provide personalized non-standard customization service, can adjust inner hole size, total length and wall thickness according to customers’ actual measured dimension of equipment connecting shaft, targeted to solve the matching difficulty of irregular shaft diameter of imported outdated wastewater dewatering equipment and old filter press transformation projects, widely applicable to new project supporting and old equipment upgrading reconstruction of various sewage treatment stations.

6.Finite element optimized anti-fatigue structural performance

Before formal mass production, our R&D team uses finite element simulation software to carry out repeated stress analysis and structural optimization on socket wall thickness distribution and inner hole radian, rationally disperse stress concentration position during squeezing and equipment vibration. After optimized structural design, the finished product can withstand millions of cycles of periodic alternating vibration without loose displacement and fatigue cracking, perfectly match the 24-hour continuous uninterrupted running production rhythm of large and medium-sized wastewater treatment production lines, stable long-term operation performance.

Main Application Fields

1.Membrane Filter Press Auxiliary Connection

Used for filter plate pin shaft fixing, hydraulic cylinder connecting part locking and frame base assembly, solve loose shake caused by repeated squeezing of filter press.

2.Variable Frequency Sludge Feed Pump Fitting

Fix pump bearing base and motor connecting shaft, eliminate shaft abrasion and fitting falling off from long-time sand-containing sludge conveying vibration.

3.Belt Sludge Dewatering Machine Components

Install on roller spindle and scraper fixed shaft to keep stable rotation of dewatering roller under continuous sewage splash environment.

4.Wastewater Pipeline & Dosing Equipment

Realize tight connection of pipeline transition shaft and automatic flocculant dosing cabinet fixing pin, avoid pipeline joint leakage from loose fittings.

5.Municipal Sewage Thickener & Agitator

Lock agitator spindle base to prevent shaft shake caused by long-term sewage immersion and stirring vibration.

FAQ

1.Q: Can the squeezing socket be disassembled and reused after installation?

A: Strength Carbon Steel Squeezing Reinforcing Bar Socket For Wastewater Complete Equipment Connection Parts relies on hydraulic squeezing to produce plastic deformation for tight locking, irreversible after extrusion. Once pressed in place, disassembly will damage the sleeve structure, so it is disposable and cannot be recycled; new sleeves are required for secondary installation.

2.Q: What sewage environment is the galvanized carbon steel squeezing socket suitable for?

A: Standard hot-dip galvanized carbon steel type fits neutral and weak corrosive wastewater with pH value 4~11, such as municipal domestic sewage and ordinary food factory organic wastewater. For strong acid, strong alkali and high chloride chemical wastewater, please customize SUS304 or SUS316 stainless steel squeezing socket.

3.Q: Do you support non-standard custom sizes?

A: Yes. We can customize inner hole diameter, overall length and wall thickness according to customers’ actual measured connecting shaft size, including special non-standard dimensions for old imported filter press and sludge pump renovation. Conventional sizes Φ8~Φ60 are in stock for fast delivery.

4.Q: Do you supply matched hydraulic squeezing installation tools together?

A: We can provide supporting dedicated portable hydraulic squeezing tools as optional accessories for one-stop purchase, convenient for customers’ on-site installation without extra procurement from other suppliers.

5.Q: How long is the service life of galvanized squeezing socket under normal working conditions?

A: Under pH6~9 conventional municipal sewage environment and regular monthly anti-rust maintenance, the service life can reach 12~18 months; in weak corrosive wastewater (pH4~6 or 9~11), the service life is about 8~12 months.

6.Q: Can you provide CE and ISO certification documents for export customs clearance?

A: All products are equipped with complete CE mechanical safety certification and ISO9001 factory inspection reports. We can provide certification copies for overseas tender, customs clearance and third-party inspection.

7.Q: What’s your product warranty policy?

A: We offer 12-month quality warranty against factory manufacturing defects; damage caused by improper installation, overpressure squeezing or wrong model selection is not covered by warranty. We provide lifelong free technical consultation and cost-price spare parts supply after warranty expiration.

8.Q: What if the socket cannot be fully pressed during on-site installation?

A: First check whether the shaft surface has rust and burrs; confirm the selected inner hole specification matches the shaft diameter; adjust the hydraulic equipment pressure value as required. If the socket itself is deformed, replace a new finished product for reinstallation.

How to Select

1. Confirm actual dimension of connecting shaft

Precisely measure the outer diameter of the equipment spindle or locating pin with vernier caliper, select socket inner hole matching the measured shaft size; avoid too loose or tight specification.

Measure the effective assembling length of the shaft, determine the total length of the squeezing socket according to the installation space.

Confirm required wall thickness based on equipment load and vibration intensity; heavy-load pump and filter press key positions choose thicker-wall products.

2. Confirm wastewater medium corrosion property to pick material & surface craft

Neutral domestic sewage (pH 6~9): Standard hot galvanized 45# carbon steel squeezing socket, cost-effective for conventional municipal projects.

Weak acid/alkali wastewater (pH4~6 / pH9~11, low salt): Galvanized enhanced anti-rust type with thicker zinc coating.

Strong acid, strong alkali, high chloride chemical wastewater (pH＜4 or pH＞11): Custom SUS304 / SUS316 stainless steel squeezing socket instead of carbon steel.

3. Confirm equipment working load and vibration condition

Low vibration equipment (dosing tank, small agitator): Regular wall thickness standard specification.

High-frequency vibration equipment (sludge feed pump, filter press hydraulic connection part): Upgrade high-strength thick-wall optimized anti-fatigue socket.

4. Confirm installation space limitation

Narrow compact installation space: Custom short-size thin-wall squeezing socket.

Open large installation space: Select conventional stock standard specification for fast delivery.

5. Confirm supporting installation tool demand

If clients do not have existing squeezing hydraulic tools, we can supply matched dedicated portable hydraulic press together with sockets for one-stop ordering.

6. Special customized demand for old imported equipment

For outdated imported filter press and dewatering machine with irregular non-standard shaft diameter, provide measured drawing or on-site size data, we develop exclusive non-standard dimension customization.

Customization & Full Production Process

1. Step1 Working Condition Parameter Confirmation:

Collect customer’s matching shaft diameter, equipment type, sewage medium pH and on-site vibration intensity; confirm socket inner hole, length, wall thickness and anti-rust requirement to issue formal quotation.

2. Step2 Raw Material Incoming Inspection:

45# seamless steel bar passes spectrum composition test and tensile spot check, unqualified blank rejected directly before cutting.

3. Step3 Integral Forging & CNC Fine Machining:

Whole blank hot forging forming then precision turning inner hole and outer circle, strictly control dimensional tolerance within ±0.15mm.

4. Step4 Hot-dip Galvanized Anti-rust Treatment:

Full-piece galvanizing + surface sealing anti-rust paint processing to form double anti-corrosion layer.

5. Step5 Batch Performance Test:

Random sampling for compression test and salt spray aging test, qualified products enter finished goods sorting.

6. Step6 Classified Packing:

Sort finished sockets by specification, seal into independent waterproof PE bags.

7. Step7 After-sale Service:

Provide remote installation guidance, 12-month quality warranty for production defects.

Product Comparison vs Ordinary Threaded Socket

Common Problems & Solutions

1. Socket jams and cannot be fully pressed into position during hydraulic installation

Causes

(1)The surface of connecting shaft adheres thick sludge, rust scale, burr and oxide skin without thorough cleaning before assembly; sundries block the matching gap between shaft and socket inner hole.

(2)The inner hole of squeezing socket is deformed by collision during storage and transportation, resulting in shrinkage of aperture size.

(3)Wrong specification selection: the inner hole diameter of socket is smaller than the actual outer diameter of spindle.

(4)The hydraulic tool output pressure rises too fast in a short time, causing instantaneous local clamping jamming.

Solutions

(1)Use steel brush and sandpaper to polish the shaft surface thoroughly, wipe away all dirt with compressed air before installation.

(2)Check finished sockets one by one before construction, pick out deformed and defective products for replacement.

(3)Remeasure the actual shaft diameter and select matched standard socket specification strictly according to measured data.

(4)Operate hydraulic equipment step by step with slow pressure boost to realize uniform gradual squeezing.

2. Socket gets loose and slips off after short period of equipment running

Causes

(1)Hydraulic squeezing pressure is lower than specified standard value, insufficient plastic deformation of socket body, no zero-clearance interference locking formed.

(2)Oversized inner hole of selected socket leads to large assembly clearance after pressing, unable to fasten the spindle tightly.

(3)Long-term erosion from high-salt and weak corrosive sewage damages galvanized layer, metal expands slightly after rusting and loses clamping force.

(4)The part is located at high-frequency vibration position such as pump bearing, ordinary thin-wall socket cannot resist long-time alternating fatigue load.

Solutions

(1)Adjust hydraulic pressure to factory recommended parameter and perform supplementary secondary squeezing.

(2)Replace new sockets with accurate inner hole size matching the spindle dimension.

(3)Coat anti-rust grease on outer surface every month; replace thick galvanized or stainless steel socket for severe corrosion sites.

(4)Upgrade to thick-wall high-strength customized squeezing socket for key vibration-intensive connecting positions.

3. Early rust on socket surface far before normal service life expires

Causes

(1)Galvanized coating is scratched and peeled by hydraulic fixture during squeezing construction, losing anti-corrosion protection locally.

(2)The component is always soaked by overflowing wastewater without regular cleaning and maintenance.

(3)Standard carbon steel galvanized socket is wrongly used in strong acid and strong alkali high-corrosion working environment beyond applicable pH range.

(4)Storage environment of spare parts is damp, leading to pre-rust before installation.

Solutions

(1)Smear special anti-seize anti-rust grease on coating damaged area to isolate sewage splash erosion.

(2)Clean up accumulated sludge and waste water around fittings during each regular equipment shutdown maintenance.

(3)Replace SUS304/SUS316 stainless steel squeezing socket for severe corrosive chemical wastewater projects.

(4)Store unused spare sockets in dry and ventilated warehouse with sealed plastic packaging.

4. Socekt cracks or splits during squeezing operation

Causes

(1)Excessive hydraulic pressure far exceeds rated design parameter, instantaneous stress exceeds material compression limit.

(2)Unqualified raw material with loose internal texture, poor compression resistance and brittle texture.

(3)Improper specification matching: thin-wall socket is installed on heavy-load connecting position of filter press and sludge pump.

(4)Skewed clamping leads to unilateral stress concentration during pressing.

Solutions

(1)Strictly follow specification-matched standard pressure value of hydraulic tool to avoid overpressing.

(2)Return defective raw material products and replace qualified high-strength 45# seamless steel sockets.

(3)Select thick-wall reinforced type squeezing socket for heavy-load and high-vibration equipment connection.

(4)Keep socket and spindle coaxial and horizontal during clamping and squeezing construction.

5. Difficult to dismantle aged and damaged squeezing socket on old equipment

Causes

(1)After long-term sewage corrosion, the socket inner wall and spindle surface are rust-bonded into an integrated structure without separable gap.

(2)Squeezing installation forms full interference fit without reserved dismantling space, and the socket has produced irreversible plastic deformation.

Solutions

(1)Use cutting wheel to cut open the old socket along axial direction carefully, avoid scratching and damaging the equipment spindle.

(2)After removing waste socket, polish rust residue on spindle surface thoroughly before installing new matched squeezing socket.

6. Whole equipment produces abnormal shaking after socket installation

Causes

(1)Eccentric oblique installation causes uneven stress distribution of socket, resulting in rotational eccentricity during equipment operation.

(2)Inner hole size mismatch leads to partial local clearance, unstable fit between socket and spindle.

(3)Foreign impurities remain in matching gap after installation, causing rotation jitter.

Solutions

(1)Reinstall new socket while ensuring complete concentricity of socket and connecting shaft.

(2)Recheck spindle dimension and replace accurately sized squeezing socket for secondary construction.

(3)Clear all residual impurities inside fitting gap before reinstallation.

Matching Supporting Equipment & Optional Accessories

1. Membrane Filter Press Matching Application

Strength Carbon Steel Squeezing Reinforcing Bar Socket For Wastewater Complete Equipment Connection Parts is applied for fixed locking of filter plate connecting pin, hydraulic cylinder spindle and frame assembly shaft on membrane filter press. After hydraulic compression installation, it eliminates loose shaking caused by repeated high-pressure squeezing of filter plates during long-term feeding and cake discharging, effectively avoids filter plate dislocation, feed inlet deformation and slurry leakage at the clamping gap. It optimizes the overall sealing performance of filter chamber, stabilizes sludge dewatering efficiency and reduces frequent shutdown maintenance caused by loose connecting parts.

2. Variable Frequency Sludge Feed Pump Matching Application

Specially used for fastening pump bearing base, rotor spindle and motor output connecting shaft of sludge feed pump. It solves shaft looseness, eccentric wear and abnormal jitter generated from long-time transportation of sand-containing viscous sludge. Firm squeeze locking reduces pump body vibration and medium leakage at the flange gap, lowers the abrasion loss of bearing components and extends the service cycle of the whole pump set.

3. Belt Sludge Dewatering Machine Matching Application

Installed on the main spindle of dewatering roller, scraper fixing shaft and tensioning component shaft of belt dewaterer. It prevents shaft falling off and roller deflection resulting from continuous sewage splash and cyclic rotating friction, keeps the synchronous operation of each roller assembly, avoids sludge overflow caused by unstable scraper fit and ensures continuous and stable sludge extrusion dewatering effect.

4. Sewage Dosing & Agitation Equipment Matching Application

Used for fixed assembly of agitator base spindle, dosing equipment rotating shaft and cabinet positioning pin inside chemical dosing tank. It resists the alternating vibration from long-term stirring of mixed sewage and reagent, prevents shaft looseness leading to stirring dead zone or liquid pipeline joint leakage, guarantees uniform mixing of flocculant and raw sludge for stable automatic dosing operation.

5. Optional Auxiliary Supporting Accessories

(1)Dedicated portable hydraulic squeezing installation tool: Matched according to different socket specifications, convenient for on-site rapid cold-press mounting without extra procurement of installation equipment from other suppliers.

(2)Sewage-resistant special anti-rust grease: Coated on shaft and socket surface before installation to isolate humid wastewater splash, reduce later corrosion speed and prolong accessory service life.All above accessories can be supplied together with squeezing sleeves for one-stop centralized purchasing, saving customers’ separate procurement cost and delivery cycle.
