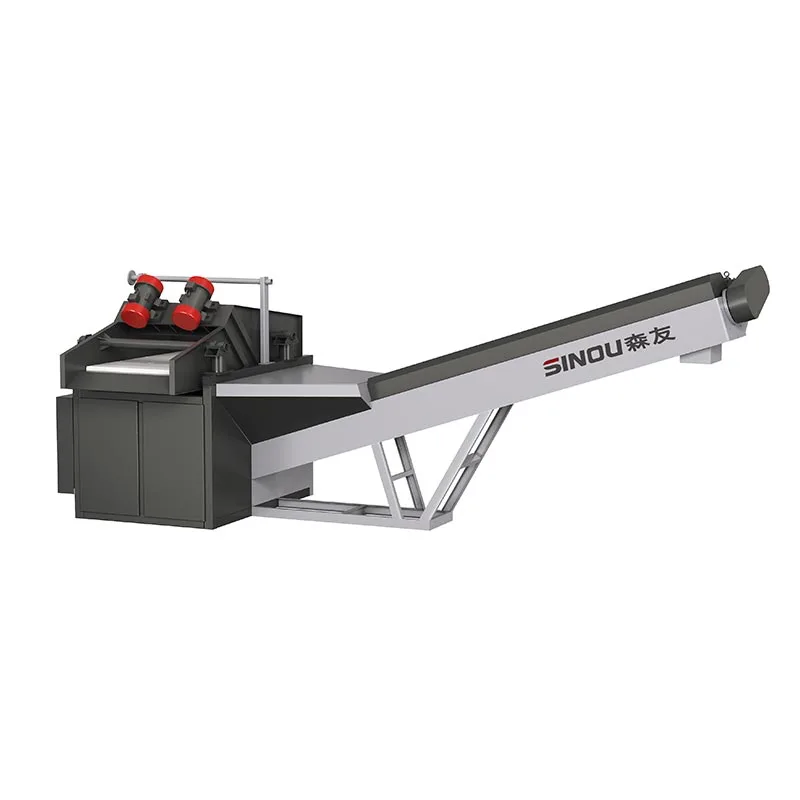

Vibratory Concrete Reclaimer for Concrete Batching Plants

Sinou provides purpose-built Vibratory Concrete Reclaimer for concrete batching plants of all sizes. This equipment recycles leftover concrete from mixing trucks, producing clean, reusable aggregates and process water.

1. Parameter Specification

● Model: SY-FZ25

● Stone screen specification: 2400×1200mm, sand spiral diameter: 480mm

● Rated screening capacity: 20 cubic meters per hour

● Separation standard: stone particle above 5mm, sand particle below 5mm

● Vibration matching power: 1.5×2kW, winch driving motor power: 5.5kW

● Whole machine total weight: 5t

● Overall external dimension: 6570×2450×2750mm

● Applicable matching mixer truck quantity: within 60 units

● Operation control mode: PLC full automatic integrated intelligent control

● Material processing structure: guide trough uniform feeding, integrated screening and washing integrated structure

● Overall structural characteristic: high strength welding forming, wear-resistant lining anti-impact anti-abrasion design

2. Core Product Advantages

● Guide trough uniform feeding structure, material distribution even, screening washing more sufficient, promote the overall separation efficiency of Vibratory Concrete Reclaimer for Concrete Batching Plants

● High wear-resistant polyurethane screen mesh, anti-blocking, anti-abrasion, long service life, reduce manual cleaning frequency

● Full closed circulating water system, high water recycling rate, no sewage outward discharge, fully meet environmental assessment requirement

● PLC automatic control system, automatically adjust running parameters according to material state, realize unattended stable operation

● High integral structural strength, shock resistance and fatigue resistance, adapt long-term full-load continuous stable operation

● Low energy consumption power configuration, reasonable power matching, effectively reduce daily operation power consumption cost

● Open maintenance structure design, convenient daily inspection, cleaning and component overhaul, improve maintenance efficiency

3. Common Faults and Solutions

● Screen surface material blockage: caused by high viscosity concrete and excessive feeding, slow down feeding speed, increase spray water pressure, clean residue after shutdown

● Unqualified aggregate cleanliness: nozzle scaling and blockage lead to insufficient cleaning, regularly disassemble clean nozzle, calibrate reasonable water pressure

● Abnormal vibration and fuselage shaking: uneven placement foundation and loose connecting bolt, level equipment again, fasten all fastening parts

● Dual motor asynchronous operation: check circuit connection and power supply stability, calibrate motor synchronization state, recover stable vibration output

● Circulating slurry overflow: internal pipeline blockage and liquid level sensor deviation, dredge pipeline, calibrate induction component parameter

● Spiral conveying stuck: sundry winding and material accumulation inside, stop machine clear foreign matter, lubricate transmission part regularly

4. Factory Quality Inspection Standard

● All finished Vibratory Concrete Reclaimer for Concrete Batching Plants pass 72-hour continuous load operation test before delivery, detect capacity, vibration stability, washing effect item by item

● Strictly implement factory inspection procedure, complete qualification certificate, detection report, environmental compliance certification complete and effective

● Support customer raw concrete sample detection service, test actual separation effect and aggregate quality data on site

● Comprehensive inspection for frame structure, circuit system, water circulation component, wearing parts before delivery, record complete detection data

● Standard finished product calibration, unified parameter debugging, ensure each equipment performance index consistent and stable

● Strict packaging protection before delivery, avoid collision damage in transportation, guarantee factory quality intact delivery
