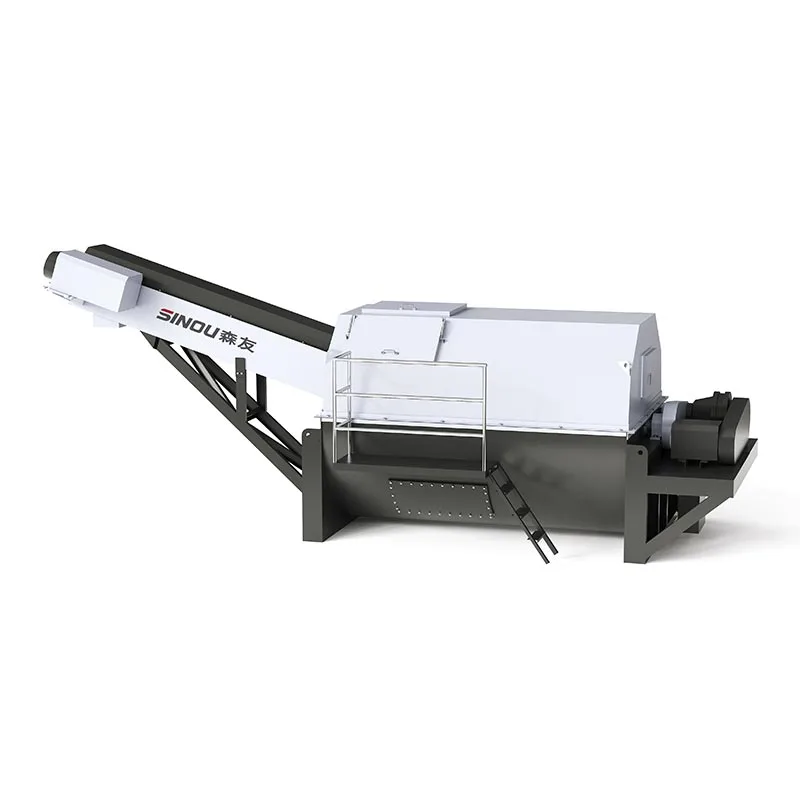

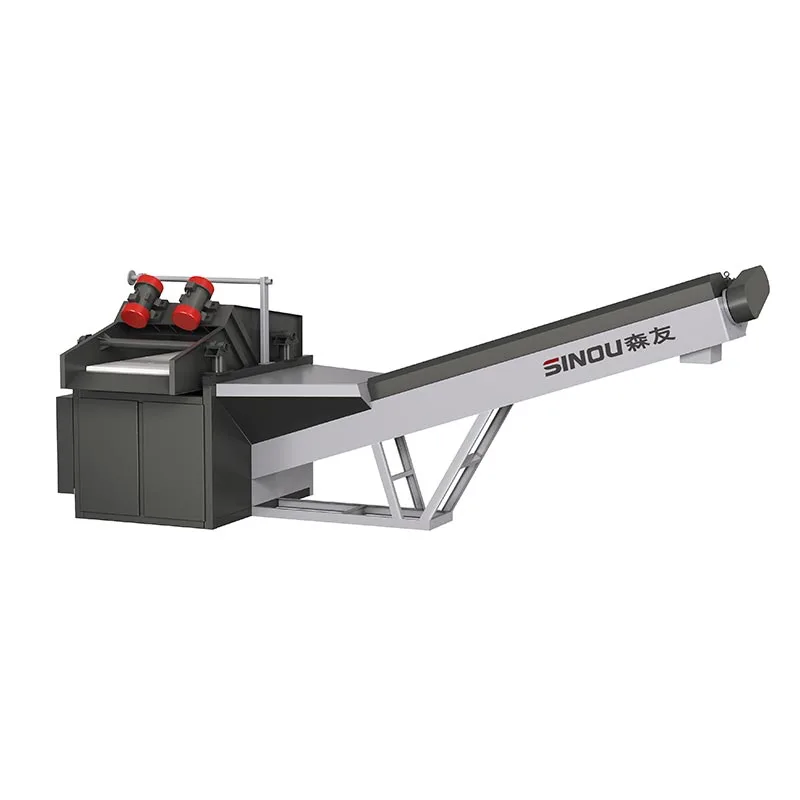

Vibratory Concrete Reclaimer for Construction Industry Batching Plants

Sinou provides Vibratory Concrete Reclaimer for Construction Industry Batching Plants. Designed for outdoor use, it recycles waste concrete while withstanding the harsh conditions of construction sites. Contact us and get a factory direct quote.

1. Key Technical Features and Performance Advantages

● High-Frequency Adjustable Vibration System: This Vibratory Concrete Reclaimer for Construction Industry Batching Plants, adopts a high-frequency vibration separation system with adjustable amplitude and frequency, which can adapt to different concrete viscosities and slump grades, ensuring high separation efficiency even for high-admixture and high-viscosity concrete. The vibration parameters can be precisely adjusted according to on-site conditions, avoiding material accumulation and ensuring continuous operation.

● Anti-Clogging Wear-Resistant Screen Surface: The screen surface is made of high-quality wear-resistant polyurethane material with a special anti-clogging design, which effectively prevents material sticking and blockage, reducing the need for frequent manual cleaning. The screen has a long service life and low replacement cost, ensuring stable operation under high-intensity working conditions.

● Multi-Stage High-Efficiency Washing System: The equipment is equipped with a multi-stage water washing system, which can thoroughly clean the cement slurry on the aggregate surface. The aggregate cleanliness can reach more than 95%, meeting the reuse requirements of construction engineering. The water flow can be adjusted independently to adapt to different material volumes.

● Compact Integrated Structure Design: The equipment integrates feeding, vibration separation, washing, and slurry collection into one unit, with a compact structure and small floor area, which is suitable for construction sites with limited space. The overall height is optimized to match the unloading height of mixer trucks, avoiding the need for modification of the unloading platform.

● Low-Noise Heavy-Duty Power System: The heavy-duty vibration motor has strong power, stable operation, and low noise, meeting the noise control requirements of urban construction sites. The motor is equipped with overload protection and temperature protection devices, which can automatically stop in case of abnormal conditions to avoid equipment damage.

● Intelligent Unmanned Control System: The equipment is equipped with an intelligent control system, which can automatically adjust the vibration frequency and water pressure according to the feeding amount, realizing unmanned operation. The system has a fault self-diagnosis function, which can prompt maintenance information in time to reduce downtime.

2. On-Site Installation, Commissioning and Adaptation Process

● Pre-Installation Site Survey and Customized Plan: Before installation, Senyou's professional engineers will conduct an on-site survey to confirm the site conditions, including ground bearing capacity, power supply, water supply, and the position of mixer truck unloading points. Based on the survey results, a targeted installation plan will be formulated to ensure the equipment can be installed smoothly.

● Rapid Installation and Foundation-Free Design: The equipment only needs a flat hardened ground without complex foundation construction, which greatly shortens the installation cycle. The modular design allows for quick assembly and disassembly, making it easy to move between different construction sites.

● Precision Leveling and Pipeline Connection: During installation, the levelness of the equipment is strictly controlled to ensure the stable operation of the vibration system. The pipeline connection and electrical wiring are carried out according to the design drawings to ensure no leakage and safe power use.

● Targeted Parameter Commissioning: During commissioning, the engineers will adjust the vibration amplitude, frequency, water pressure, and feeding speed according to the actual concrete conditions of the construction site to ensure the optimal separation effect. The parameters can be stored in the system for quick recall during subsequent use.

● Safety Protection Function Test: The safety protection devices such as emergency stop, overload protection, and power-off protection are comprehensively tested to ensure the safe operation of the equipment under abnormal conditions.

3. Comparison with Traditional Rotary Separators in Construction Site Applications

● Adaptability to Complex Concrete Conditions: Compared with traditional rotary separators, the vibratory separator adopts a vibration separation principle, which is more suitable for high-viscosity concrete with high admixture content, which is common in construction sites. The separation efficiency is improved by 15-20% compared with rotary models, and the processing capacity is stronger.

● Anti-Clogging and Low Maintenance Advantages: The anti-clogging design of the screen surface eliminates the need for frequent manual cleaning, reducing downtime and maintenance costs. The rotary separator is prone to material accumulation and blockage, requiring regular shutdown for cleaning, which affects the construction progress.

● Mobility and Space Utilization: The vibratory separator has a compact structure and optional mobile wheels, allowing it to be quickly moved between different construction sites. Traditional rotary separators are fixed and difficult to relocate, and require a large floor area, which is not suitable for temporary construction sites with limited space.

● Water and Energy Consumption Control: The vibratory separator has a lower water consumption, reducing the pressure on the construction site's water supply system. The vibration motor has high energy efficiency, and the power consumption per unit of material is lower than that of rotary separators, saving operating costs.

● Environmental Protection and On-Site Compliance: The fully enclosed structure of the vibratory separator effectively reduces dust and slurry splashing, meeting the strict environmental protection requirements of modern construction sites. The rotary separator has poor sealing performance, which is prone to environmental pollution and may face the risk of environmental penalties.

4. Construction Industry Application Scenarios and Value Analysis

● High-Rise Building Construction Projects: In high-rise building construction, the Vibratory Concrete Reclaimer for Construction Industry Batching Plants can efficiently treat the residual concrete from mixer trucks and pump trucks, realizing the recycling of aggregates and water resources. The recovered aggregates can be used for road base and backfill, reducing the waste of raw materials and effectively controlling the construction cost.

● Bridge and Road Engineering Projects: In bridge and road engineering, where concrete quality requirements are high, the high-cleanliness recycled aggregates produced by the equipment meet the engineering quality standards. The recycled water can be reused for concrete mixing and site cleaning, reducing the demand for natural water resources.

● Large-Scale Infrastructure Projects: For large-scale infrastructure projects such as airports, railways, and ports, the high processing capacity and stable performance of the equipment can meet the needs of continuous construction. The modular design can be expanded according to the project scale, ensuring the smooth progress of the project.

● Temporary Construction Sites and Mobile Batching Plants: For temporary construction sites with limited space and frequent relocation, the compact and movable design of the equipment provides a flexible and cost-effective solution. The equipment can be quickly installed and disassembled, adapting to the dynamic construction progress.
