Technical Comparison of Filter Press Feed Pumps – Intelligent High-Pressure Plunger Pump Sets New Industry Standard Headline

With increasingly stringent environmental regulations covering aggregate plants, ready-mix concrete factories, industrial waste disposal and municipal sludge treatment, energy consumption, maintenance workload and sludge dewatering efficiency of filter press systems have become core cost-cutting priorities for production plants. Centrifugal pumps, diaphragm pumps and screw pumps have long been widely adopted as filter press feeding equipment, yet each comes with obvious inherent drawbacks. A recent comprehensive lab comparison test on four types of feed pumps has verified that the Sinou high-pressure intelligent plunger pump delivers all-round performance advantages thanks to its adjustable high pressure and low energy consumption, bringing a revolutionary upgrade path for solid-liquid separation facilities.

As the core equipment of the whole plate and frame filter press system, the feed pump directly determines dewatering cycle, final filter cake moisture and daily workshop operation costs, including monthly electricity bills, spare part replacement labor and sludge transportation expenditure. This test adopted a unified flow rate of 25m³/h, targeting two typical working conditions: quarry aggregate washing slurry and high-concentration mixing plant wastewater. The evaluation covered four key dimensions: working pressure, motor power, abrasion resistance and automatic control compatibility.

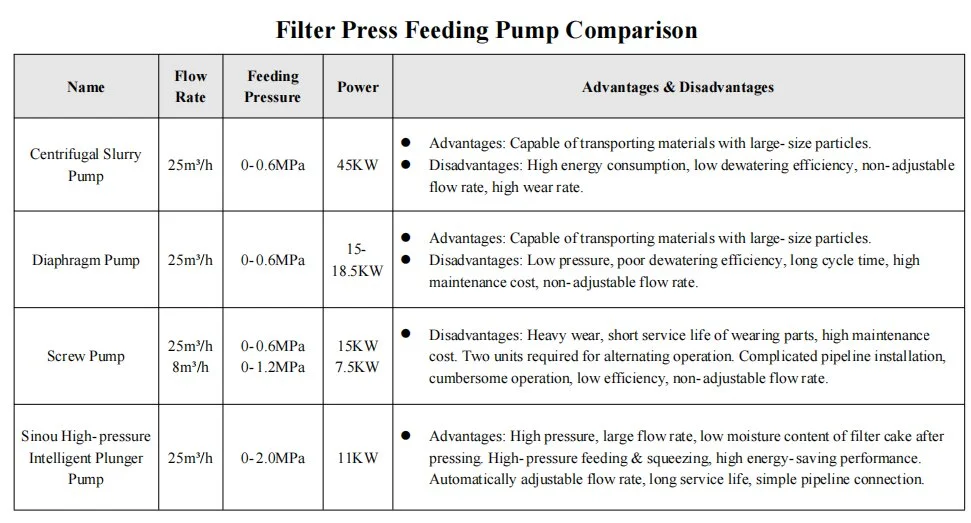

Test data reveals the inherent flaws of three traditional pump models:

It can deliver slurry containing large solid particles. However, it is equipped with a 45kW motor which causes extremely high power consumption. Its feeding capacity drops sharply once pressure exceeds 0.3MPa, and automatic flow adjustment is unavailable, failing to match the two-stage working logic of filter press (fast chamber filling + high-pressure squeezing). The impeller and pump casing suffer continuous abrasive erosion, requiring frequent shutdown and part replacement for small and medium mixing plants and aggregate yards.

2. Diaphragm Pump (Electric & Pneumatic Types)

Though compatible with large-particle materials, its maximum working pressure is only 0.6MPa, resulting in insufficient squeezing force and high filter cake moisture. A complete dewatering cycle takes much longer. Diaphragms wear rapidly under continuous operation, bringing heavy monthly maintenance expenses. Without adjustable flow, it only suits low-concentration wastewater treatment and cannot meet deep dewatering demands of high-density quarry mud.

3. Screw Pump

Two versions are available: 25m³/h high-flow model for grouting and 8m³/h low-flow model for sludge dewatering, with a peak pressure of 1.2MPa. The rotor and stator are extremely vulnerable to abrasion by aggregate particles. Factories generally need two screw pumps for alternate operation, with complicated piping layout and cumbersome operation procedures. Its long-term comprehensive maintenance cost far exceeds other pump types.

Sinou High-Pressure Intelligent Plunger Pump

Running under the same 20m³/h flow rate, this pump only needs an 11kW motor and supports a maximum working pressure up to 2.0MPa, realizing ground-breaking performance improvement.Equipped with an intelligent pressure & flow adaptive control system, it automatically operates at large flow to fill filter chambers quickly at the initial stage, then switches to low flow & high pressure for deep squeezing when filter cake accumulates and resistance rises, with no manual adjustment required. High-pressure extrusion produces much drier filter cake and cuts sludge outward transportation volume significantly. The streamlined pipeline layout and highly wear-resistant structure allow stable round-the-clock operation under high temperature & humid environments in South and Southeast Asia, greatly extending the service cycle of wearing parts.

Industry Value Analysis

According to technical specialists in environmental solid-liquid separation equipment: Most aggregate and ready-mix factories, as well as integrated waste management companies, still rely on outdated centrifugal and screw pumps. Although these pumps have lower initial purchase prices, hidden costs including electricity, spare parts and production downtime accumulate every year. The side-by-side parameter comparison clearly proves that the intelligent high-pressure plunger pump reduces the full-lifecycle operating cost by 40%–70%. It perfectly matches the complete wastewater treatment packages exported to Sri Lanka, India, Turkey and other overseas markets, including filter presses, chemical dosing systems and sludge conveying equipment.

For environmental engineering contractors and ready-mix machinery exporters, the plunger pump can be used as a standardized matching unit to replace complicated dual-screw-pump configurations and improve the competitiveness of complete production lines. For self-operated local aggregate and mixing plants, a single plunger pump can cover the whole feeding & squeezing process, reducing equipment procurement quantity and footprint, and aligning with the general trend of intelligent, energy-saving plant technical transformation.

Industry Outlook

Driven by global carbon neutrality goals and stricter waste discharge policies, competition in solid-liquid separation equipment has shifted from simple price comparison to comprehensive evaluation of full-lifecycle energy consumption, maintenance and dewatering performance. The market share of traditional high-wear, high-energy feed pumps keeps shrinking. Intelligent high-pressure plunger pumps will become mainstream standard supporting equipment for aggregate and construction waste treatment within the next three years. Equipment manufacturers will continue optimizing anti-corrosion & tropical-adapted plunger pump versions, delivering integrated all-in-one sludge dewatering solutions for global clients in South Asia, the Middle East and beyond.
