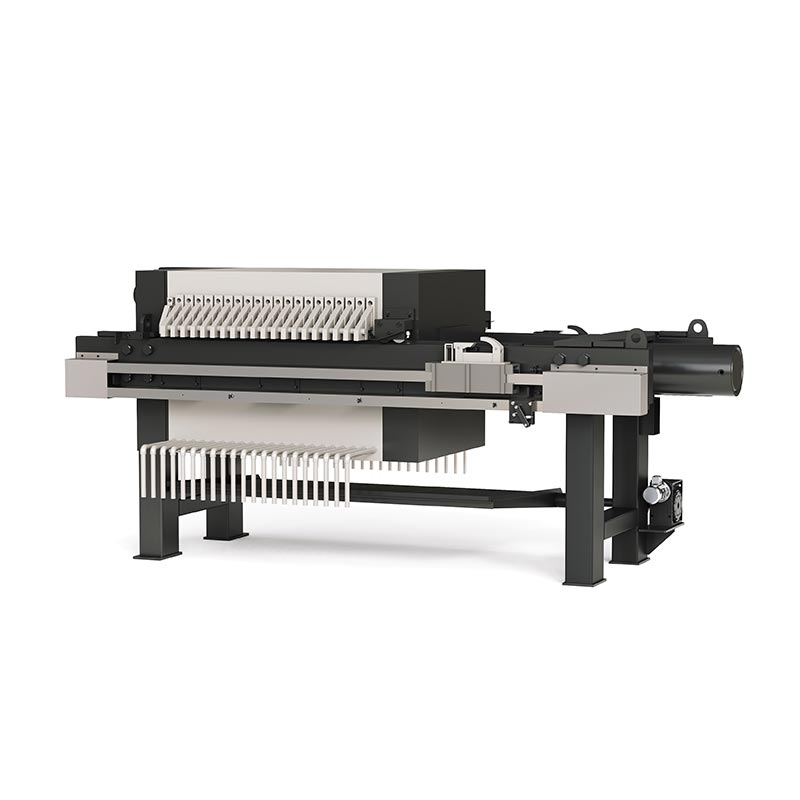

Municipal Sewage Chamber Filter Press

SINOU, a reliable manufacturer and supplier from China, provides professional Municipal Sewage Chamber Filter Press for global customers. This equipment is specially developed for municipal sludge with high organic content, fine particles and high viscosity.

It adopts high-strength chamber filter plates and stable hydraulic system to realize thorough solid-liquid separation, greatly reducing sludge volume and lowering disposal cost. The whole machine supports fully automatic operation including plate closing, feeding, filtering, plate pulling and cake discharging, with simple maintenance and stable performance.

We provide customized filtering area, plate size and control mode to meet different municipal sewage treatment capacities and site conditions.

Product Details

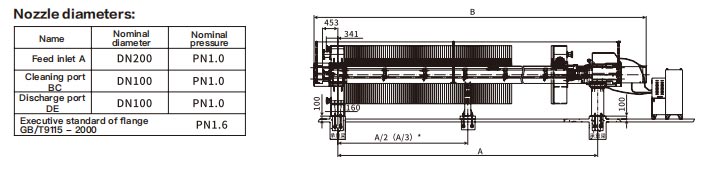

1. Nozzle & Pipeline Specification

● Feed inlet A: DN200, Nominal pressure PN1.0

● Cleaning port BC: DN100, Nominal pressure PN1.0

● Discharge port DE: DN100, Nominal pressure PN1.0

● Flange standard: GB/T9115-2000, PN1.6

● Large-caliber feed inlet ensures smooth feeding of high-solid-content municipal sludge, effectively avoiding blockage during long-time continuous operation. Standardized cleaning & discharge ports make pipeline maintenance and residue discharge more convenient.

2. Structural Dimension Details

● Front-end installation dimension: 453mm / 341mm

● Feed inlet center height: 160mm

● Bottom support height: 100mm

● Footing distance: A; Overall length: B

● Intermediate support position: A/2 (A/3) for large-size models

● Reasonable height layout matches conventional sewage plant installation space. Multi-point intermediate supports enhance frame stability, preventing deformation under long-term heavy-load working conditions.

3. Core Technical Parameters (From Drawing & Municipal Working Condition)

● Filtering pressure: ≤0.6MPa

● Working temperature: -10~90℃

● Max hydraulic protection pressure: 29MPa

● Max hydraulic compaction pressure: 25MPa

● Max effective stroke of oil cylinder: 750mm

● Nominal diameter of compaction oil cylinder: 320mm

● Hydraulic station motor power: 4.0+2.2KW

● High-pressure stable hydraulic system provides lasting squeezing force, suitable for 24-hour continuous dewatering of municipal sludge with high organic matter and fine particles.

4. Material & Structural Design Details

● Filter plate: Reinforced polypropylene chamber filter plate, high pressure resistance, anti-aging, not easy to deform under long-time municipal sludge corrosion.

● Frame: Heavy-duty carbon steel frame with anti-rust paint treatment, strong load-bearing capacity, stable overall structure.

● Filter cloth: Special anti-clogging filter cloth for municipal sludge, high water permeability, not easy to block by fine organic particles.

● Hydraulic system: Sealed hydraulic components, stable pressure output, low failure rate.

5. Working Process Details

● Hydraulic system compresses filter plates tightly to form sealed filter chambers.

● Municipal sludge is pumped into chambers through DN200 large-caliber feed inlet.

● Under stable filtering pressure, solid-liquid separation is realized; filtrate flows out through discharge ports.

● After filtration, filter plates are pulled open automatically, dry filter cake falls off.

● Regular cleaning via cleaning ports keeps the equipment smooth for long-term operation.

6. Municipal-Oriented Design Highlights

● Large-caliber feed inlet adapts to high-viscosity municipal sludge

● Multi-support frame design for long-time continuous operation

● Low-maintenance structure, reducing sewage plant operation cost

Standardized ports for easy connection with sewage treatment pipeline system

Parameter Specification

Note: Items with "*" means having a pair of intermediate supports.

※ These parameters are for model selection reference only; for the accurate data, please refer to the drawings provided.

Working Principle

The Municipal Sewage Chamber Filter Press adopts hydraulic compression + pressure feeding filtration principle to realize efficient solid-liquid separation of urban sewage sludge, completed in four continuous steps.

1. Filter Plate Compression & Chamber Formation

The hydraulic system drives the oil cylinder to push the tail plate forward, tightly compressing all chamber filter plates between the head plate and tail plate. Sealed hollow filter chambers are formed between adjacent filter plates, providing closed space for sludge filtration.

2. Sludge Feeding & Initial Filtration

Municipal sludge is pumped into each filter chamber through the large-caliber DN200 feed inlet. Under stable feeding pressure, water in sludge penetrates filter cloth and flows out from the liquid outlet, while solid particles are intercepted by filter cloth and gradually accumulate inside the chambers to form filter cake.

3. Deep Filtration & Cake Formation

With continuous feeding, filter cake thickens gradually. The high-pressure hydraulic system maintains stable compression force to ensure tight sealing of filter plates. Fine organic particles and suspended solids in municipal sludge are fully trapped, achieving thorough dewatering under constant pressure.

4. Automatic Plate-Pulling & Filter Cake Discharge

After finishing filtration, the hydraulic system retracts the oil cylinder. The plate-pulling device pulls filter plates open one by one. Under gravity, dewatered dry filter cake falls off automatically, completing one working cycle. Cleaning ports are used for regular residue flushing to prevent pipeline blockage.

This mechanical pressure-filtration structure is highly targeted at high-organic, fine-particle municipal sludge, featuring stable dewatering effect, low moisture filter cake and clear filtrate, perfectly meeting urban sewage treatment requirements.

Precautions for Using Municipal Sewage Chamber Filter Press

1. Pre-operation Precautions

● Before starting the Municipal Sewage Chamber Filter Press, check whether all filter plates are neatly arranged and filter cloth is flat, intact and free of folds or damage to avoid sludge leakage.

● Inspect hydraulic oil level, oil quality and pipeline tightness of the Filter Press; replenish oil or replace it if deteriorated.

● Confirm feeding pump pressure is stable; do not start the equipment with empty load for a long time.

● Check electrical control system, sensors and emergency stop function to ensure normal operation.

● Ensure all cleaning ports and discharge ports are unobstructed before feeding municipal sludge.

2. During-operation Precautions

● Control feeding pressure strictly within the rated range (≤0.6 MPa) to prevent excessive pressure from damaging filter plates and filter cloth of the Filter Press.

● Do not feed oversized impurities, hard debris or large particles to avoid blocking the DN200 feed inlet or scratching filter plates of the equipment.

● Monitor sludge concentration; add flocculant reasonably for high-organic municipal sludge to improve filtration efficiency.

● Keep continuous and stable operation; avoid frequent start-stop which affects dewatering stability.

● Observe pressure changes and filtrate condition in real-time; stop operation immediately if leakage or abnormal pressure occurs.

● Do not touch moving parts such as pull-plate trolley, chain and gear during automatic running.

3. Post-operation & Daily Maintenance Precautions

● Clean filter cloth, filter chambers and all ports of the Filter Press thoroughly after each batch to remove residual municipal sludge and organic dirt, preventing clogging and odor.

● Keep hydraulic system clean, prevent sewage from entering hydraulic oil to avoid component corrosion.

● Regularly check frame, bolts and supports; tighten loose parts to maintain structural stability of the equipment.

● Replace worn filter cloth and aging seals timely to ensure long-term stable performance of the Municipal Sewage Chamber Filter Press.

● Keep the equipment dry and ventilated; do not let corrosive sewage soak the frame for a long time.

4. Safety & Long-term Use Precautions

● Strictly follow electrical safety specifications; cut off power supply during maintenance of the Filter Press.

● Do not adjust hydraulic pressure and program parameters arbitrarily without professional guidance.

● Operate within the working temperature range of -10℃ ~ 90℃; avoid over-temperature operation.

● For long-term shutdown, clean all parts thoroughly, drain residual water and do anti-rust treatment.

Why Choose SINOU?

1. Professional Municipal-Oriented Customized Design

Our municipal sewage chamber filter press is specially optimized for high-organic, fine-particle and viscous urban sewage sludge. The large-caliber DN200 feed inlet and widened flow channels effectively prevent clogging, perfectly matching the working characteristics of municipal sewage treatment plants.

2. Stable High-Pressure Performance & Reliable Dewatering Effect

Equipped with a high-pressure hydraulic system (max compaction pressure 25MPa), our product maintains stable squeezing force for 24-hour continuous operation. It ensures low-moisture filter cake and clear filtrate, helping sewage plants meet strict environmental discharge standards steadily.

3. Durable Material & Long Service Life

We adopt thickened reinforced polypropylene filter plates and heavy-duty anti-corrosion steel frame for the product. The whole machine resists sludge corrosion and structural deformation, greatly reducing replacement and maintenance costs in long-term municipal projects.

4. Fully Automatic & Labor-Saving Operation

Our filter press supports intelligent PLC automatic control, including plate closing, feeding, filtering, plate pulling and cake discharging. It reduces manual intervention, lowers labor costs and improves overall sewage treatment efficiency.

5. Strict Quality Inspection & Standardized Production

Every product undergoes full-load pressure test, sealing test and electrical safety test before delivery. All products comply with international industrial standards, with complete test reports and certifications.

6. Complete After-Sales Support & Project Experience

We have rich practical experience in municipal sewage projects worldwide. We provide on-site installation guidance, operation training, spare parts supply and long-term technical after-sales service for the Filter Press.

7. Cost-Effective & Mature Solution

Compared with membrane filter presses, our filter press has lower purchase and operating costs, stable performance and simpler maintenance. It is the most cost-effective solid-liquid separation solution for municipal sewage treatment.

Sample Policy

We do NOT provide samples or trial machines. Our Municipal Sewage Chamber Filter Press belongs to large-scale industrial equipment with large volume, heavy weight, high production cost, and customized configuration. It cannot be produced or transported as a small sample.

To confirm quality, you can check our:

● CE certification

● UL 508 test report

● Factory production video

● On-site operation video

● Completed municipal sewage project cases

● Third-party inspection before shipment

We support on-site factory inspection, online live broadcast inspection, and third-party inspection to ensure product quality meets your project requirements.

Common Problems & Solutions

1. Sludge leakage between filter plates

● Cause: Filter cloth folded or damaged; filter plates not fully closed; feeding pressure too high.
● Solution: Reinstall filter cloth flat; replace damaged cloth; check hydraulic pressure; reduce feeding pressure of the filter press.

2. Filter cloth or feed port clogged easily

● Cause: Municipal sludge has fine organic particles, high viscosity, or insufficient flocculant.
● Solution: Add flocculant properly; clean filter cloth regularly; use special anti-clogging filter cloth for the filter press.

3. Filter cake moisture too high

● Cause: Insufficient pressing pressure; short filtration time; filter cloth clogged or worn out.
● Solution: Increase working pressure; extend filtration time; clean or replace filter cloth of the Municipal Sewage Chamber Filter Press.

4. Filtrate turbid and not clear

● Cause: Filter cloth broken; sealing failure; filter plate damaged.
● Solution: Replace damaged filter cloth; check sealing parts; repair or replace filter plates of the filter press.

5. Hydraulic system no pressure or slow action

● Cause: Low hydraulic oil level; oil leakage; hydraulic parts worn or faulty.
● Solution: Replenish hydraulic oil; check and repair leakage; replace faulty parts of the filter press.

6. Automatic operation abnormal or cycle stuck

● Cause: Sensor misalignment; program parameter error; unstable power supply.
● Solution: Adjust sensor position; reset control program; ensure stable voltage for the filter press.

7. Filter cake difficult to drop automatically

● Cause: Slurry too sticky; low dewatering effect; filter cloth aging.
● Solution: Optimize flocculation effect; extend pressing time; replace anti-sticking filter cloth of the filter press.

8. Equipment noise or vibration too large

● Cause: Foundation uneven; bolts loose; moving parts poorly lubricated.
● Solution: Level the installation ground; tighten fixing bolts; lubricate moving parts of the filter press.

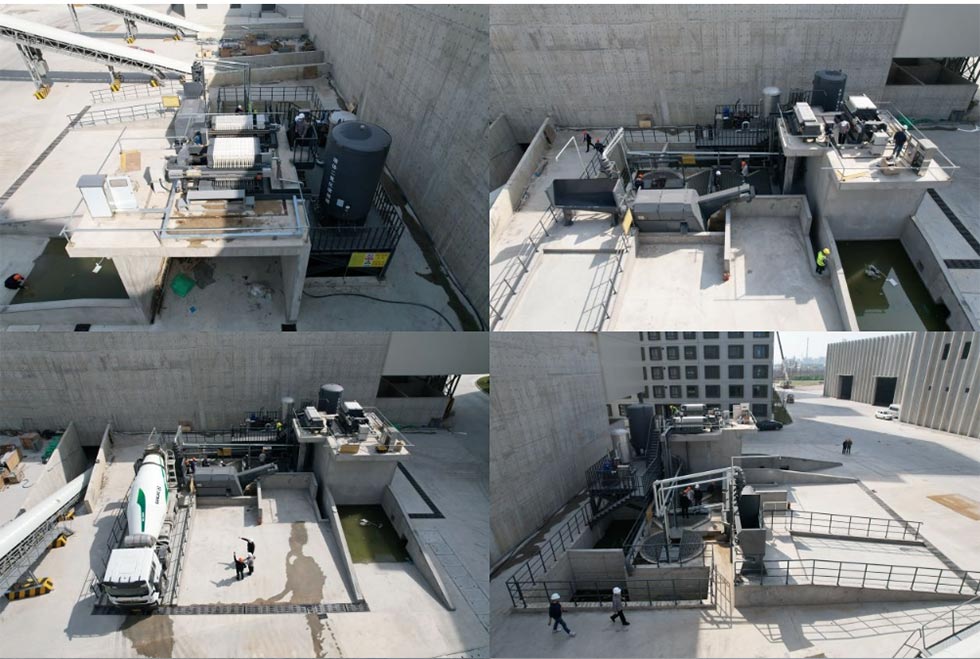

Project Case: Shanghai CITIRAISE Construction Group New Building Materials Lishui Co., Ltd.
